Description

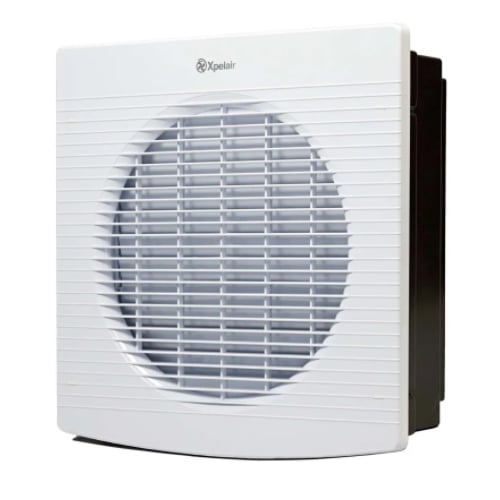

Improve indoor air quality with the Xpelair WX6EC 150mm Commercial Wall Extractor Fan. Designed for demanding ventilation applications, this efficient wall-mounted extractor fan provides reliable airflow for shops, restaurants, offices, commercial kitchens, schools and other business premises.
Part of Xpelair's commercial ventilation range, the WX6EC combines powerful extraction, energy-efficient motor technology and a practical wall-mounting system to help remove stale air, unwanted odours and excess moisture.
Powerful Commercial Ventilation
Featuring a 150mm axial fan, the Xpelair WX6EC delivers an extraction rate of up to 217m³/h (60 litres per second), helping maintain effective airflow in busy commercial environments.
The single-speed, extract-only operation provides straightforward ventilation, making it particularly suitable for locations where dependable air extraction is required without complicated controls.
Energy-Efficient EC Motor
The WX6EC features an electronically commutated (EC) motor designed for efficient operation.
With a power consumption of just 10W, the fan provides effective ventilation while helping keep electricity consumption low, particularly in environments requiring regular extraction.
Automatic Shutter and Trickle Ventilation
An integrated electro-thermal shutter opens during operation and closes when the fan is switched off, helping reduce unwanted draughts when extraction is not required.
The fan also features a trickle ventilation setting, allowing a small amount of background airflow when needed.
Designed for Wall Installation
The Xpelair WX6EC is suitable for installation in single-brick, cavity-brick and timber-frame walls.
A wall-mounting kit with a corrugated plastic telescopic wall liner is supplied, helping accommodate different wall constructions.
The discreet white fascia blends neatly into commercial surroundings, while the integrated safety finger guard provides additional protection.
Reliable Ventilation for Business Premises
With its commercial-duty construction, efficient EC motor and practical installation features, the Xpelair WX6EC is a dependable choice for businesses looking to improve ventilation.
Whether installed in a shop, restaurant, office or utility area, this wall extractor fan offers effective air extraction with straightforward operation and low running power.
Key Features
- 150mm Commercial Extractor Fan: Designed for professional ventilation applications.
- 217m³/h Extraction Rate: Removes up to 60 litres of air per second.
- Energy-Efficient EC Motor: Delivers effective ventilation with just 10W power consumption.
- Single-Speed Operation: Simple and reliable extract-only ventilation.
- Automatic Electro-Thermal Shutter: Helps reduce unwanted draughts when switched off.
- Trickle Ventilation Facility: Allows background airflow when required.
- Commercial-Duty Construction: Suitable for shops, restaurants, offices, schools and other business premises.
- Wall or Panel Installation: Flexible mounting for different building requirements.
- Telescopic Wall Liner Included: Suitable for various wall constructions.
- Safety Finger Guard: Provides additional protection during operation.
- IPX4 Protection Rating: Splash-resistant construction.
- Quiet Operation: Sound pressure level of approximately 36dB(A) at 3 metres.
- White Fascia: Discreet appearance suitable for commercial interiors.
- Five-Year Manufacturer Warranty: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Model: WX6EC
- Manufacturer Part Number: 071422
- Product Type: Commercial Wall Extractor Fan
- Colour: White
- Fan Type: Axial
- Impeller Diameter: 150mm / 6 Inches
- Motor Type: Electronically Commutated (EC)
- Number of Speeds: 1
- Airflow Direction: Extract Only
- Extraction Rate: 217m³/h
- Extraction Rate: 60L/s
- Electrical Power Consumption: 10W
- Noise Level: 36dB(A) at 3m
- Specific Fan Power: 0.17W/L/s
- IP Rating: IPX4
- Shutter Type: Electro-Thermal
- Trickle Ventilation: Yes
- Installation Type: Wall or Panel Mounted
- Height: 321mm
- Width: 290mm
- Depth: 119mm
- Net Weight: 2.9kg
- Packaged Weight: 3.1kg
- Packaged Dimensions: 365 × 345 × 185mm
- Electrical Supply: 120–230V / 50–60Hz
- Manufacturer Warranty: 5 Years
- EAN: 5011139071422
What's in the Box?
- Xpelair WX6EC 150mm Commercial Wall Extractor Fan White
- Wall-Mounting Kit
- Corrugated Plastic Telescopic Wall Liner
- Installation Instructions
