Description
Keep your bathroom fresh, comfortable and well ventilated with the Xpelair Simply Silent DX100BTS Extractor Fan. Designed for bathrooms, shower rooms, en-suites and toilets, this quiet and efficient 100mm axial extractor fan helps remove excess moisture, condensation and unwanted odours.
Part of the popular Xpelair Simply Silent range, the DX100BTS features advanced Ghost Air Movement Technology, designed to minimise airflow turbulence and reduce operating noise. With noise levels as low as 22dB(A) at 3 metres, it provides effective ventilation without unnecessary disruption.
The integrated adjustable overrun timer allows the fan to continue operating for between 30 seconds and 30 minutes after being switched off. This helps remove lingering steam and moisture following showers or baths, reducing the risk of condensation and mould growth.
Featuring two selectable speeds and extraction rates of up to 76m³/h, the DX100BTS provides flexible ventilation performance to suit different bathroom requirements.
Its contemporary square grille and clean white finish complement modern bathroom interiors, while the compact construction allows installation on walls or ceilings.
With IPX4 splash resistance, energy-efficient operation and a two-year manufacturer's guarantee, the Xpelair Simply Silent DX100BTS offers a dependable solution for everyday bathroom ventilation.
Key Features
- Quiet Bathroom Ventilation: Designed to remove excess moisture, steam and unwanted odours while minimising operating noise.
- 100mm Axial Extractor Fan: Suitable for bathrooms, shower rooms, en-suites and toilets.
- Adjustable Overrun Timer: Continues extraction for between 30 seconds and 30 minutes after switching off.
- Simply Silent Technology: Ghost Air Movement Technology helps reduce airflow turbulence and fan noise.
- Two Selectable Speeds: Choose between low and high extraction settings during installation.
- Effective Air Extraction: Delivers airflow of 54m³/h or 76m³/h depending on the selected speed.
- Low Noise Levels: Operates at just 22dB(A) on low speed and 34dB(A) on high speed, measured at 3 metres.
- Energy-Efficient Performance: Low electrical power consumption helps keep running costs down.
- Modern Square Grille: Contemporary white finish complements a wide range of bathroom interiors.
- Wall or Ceiling Installation: Flexible mounting options for different bathroom layouts.
- IPX4 Splash Resistance: Designed for use in appropriate moisture-prone environments.
- Automatic Timer Operation: Can be connected to a suitable external switch, such as a bathroom lighting circuit.
- Compact Construction: Designed for straightforward installation in standard 100mm ventilation openings.
- Building Regulations Compliance: Designed to support relevant ventilation requirements when correctly specified and installed.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Range: Simply Silent DX100B
- Model: DX100BTS
- Product Code: DX100BTS
- Manufacturer Reference: 93018AW
- Product Type: Bathroom Extractor Fan with Timer
- Fan Type: Axial
- Colour: White
- Grille Design: Square
- Application: Bathrooms, Shower Rooms, En-Suites and Toilets
- Installation Type: Wall or Ceiling Mounted
- Fan Diameter: 100mm (4 Inches)
- Duct Connection Diameter: 98mm
- Number of Speeds: 2
- Airflow (Low Speed): 54m³/h
- Airflow (High Speed): 76m³/h
- Airflow (Low Speed): 15 Litres per Second
- Airflow (High Speed): 21 Litres per Second
- Motor Type: AC
- Noise Level (Low Speed): 22dB(A) at 3 Metres
- Noise Level (High Speed): 34dB(A) at 3 Metres
- Timer Function: Yes
- Timer Type: Adjustable Overrun
- Timer Range: 30 Seconds to 30 Minutes
- Humidistat: No
- PIR Motion Sensor: No
- Pullcord: No
- Switching: External Switch
- IP Rating: IPX4

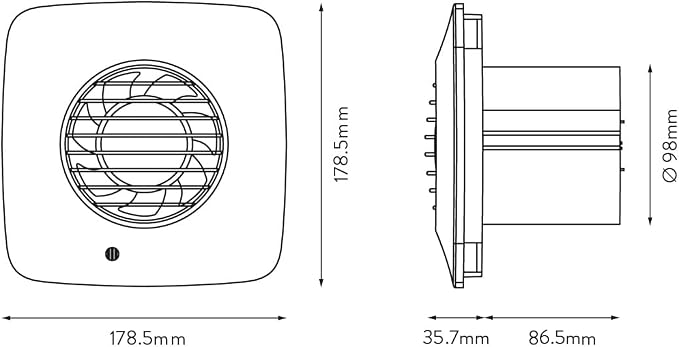

- Front Grille Dimensions: 178.5 × 178.5mm
- Front Projection: 35.7mm
- Body Depth: 86.5mm
- Manufacturer Guarantee: 2 Years, Subject to Terms
What's in the Box?
- Xpelair Simply Silent DX100BTS Extractor Fan White
- Installation Documentation
Please note: The DX100BTS is supplied without a wall-fitting kit. Ducting and additional installation accessories may need to be purchased separately.
