Description

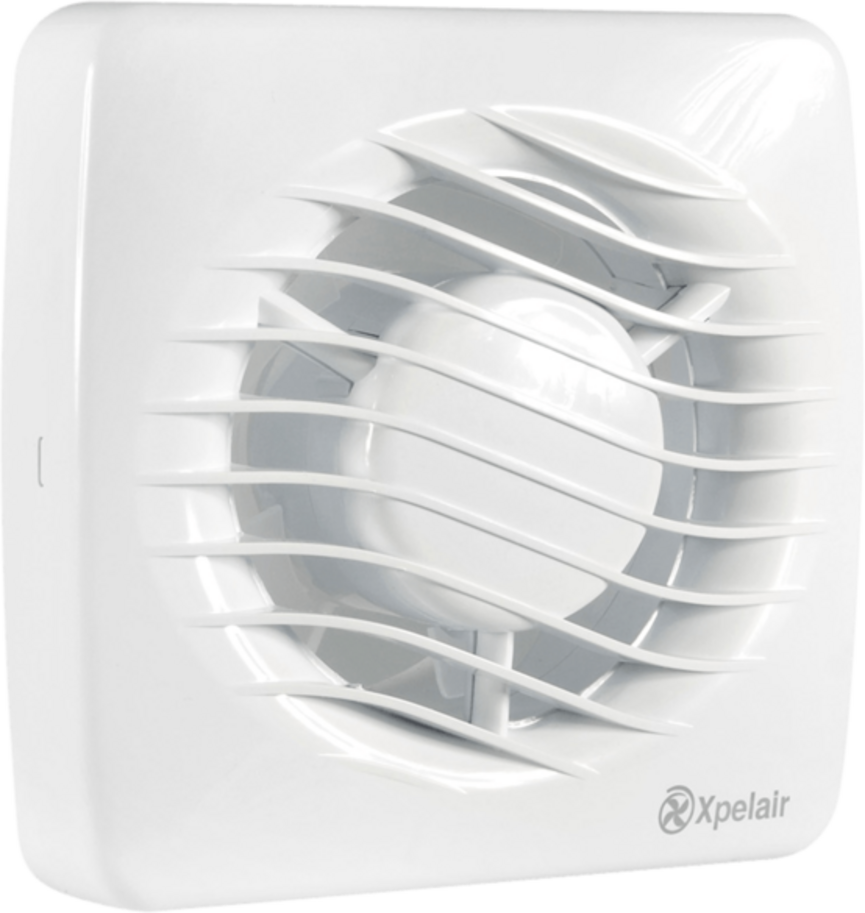

Improve bathroom ventilation with the Xpelair Simply Silent LV100S Low Voltage Extractor Fan. Designed for bathrooms, shower rooms and en-suites, this quiet and efficient 100mm axial extractor fan helps remove excess moisture, condensation and unwanted odours.
Part of the popular Xpelair Simply Silent range, the LV100S combines effective ventilation with low-noise operation. Its innovative design minimises airflow turbulence, making it ideal for bathrooms where quiet performance is particularly important.
Featuring a 12V Safety Extra Low Voltage (SELV) system, the LV100S is specifically designed for installation in suitable bathroom splash zones, including Zone 1, when installed correctly. The supplied transformer must be positioned outside the relevant bathroom zones in accordance with electrical regulations.
With two selectable speeds and extraction rates of up to 76m³/h, the fan provides flexible ventilation to suit different requirements. Its modern white grille complements contemporary bathroom interiors, while the compact design allows installation on walls or ceilings.
The Xpelair Simply Silent LV100S offers reliable everyday ventilation with low power consumption, splash-resistant construction and a two-year manufacturer's guarantee.
Key Features
- Quiet Bathroom Ventilation: Designed to remove moisture, steam and unwanted odours while minimising operating noise.
- 100mm Axial Extractor Fan: Suitable for bathrooms, shower rooms, en-suites and toilets.
- 12V SELV Operation: Safety Extra Low Voltage design suitable for appropriate bathroom installations.
- Zone 1 Suitability: Designed for installation in bathroom splash areas when correctly installed.
- Two Selectable Speeds: Choose between low and high extraction settings during installation.
- Effective Air Extraction: Delivers airflow of 54m³/h or 76m³/h depending on the selected speed.
- Simply Silent Technology: Engineered to reduce airflow turbulence and operating noise.
- Low Noise Levels: Operates at approximately 22dB(A) on low speed and 34dB(A) on high speed, measured at 3 metres.
- Energy-Efficient Performance: Low electrical power consumption of 5.5W or 11.8W.
- Modern White Grille: Clean, discreet design suitable for contemporary bathrooms.
- Wall or Ceiling Installation: Flexible mounting options for different bathroom layouts.
- IPX4 Splash Resistance: Designed for use in appropriate moisture-prone environments.
- SELV Transformer Included: Supplied with a suitable transformer for low-voltage operation.
- Standard Switching Operation: Designed for operation using an appropriate external switch.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Range: Simply Silent LV100
- Model: LV100S
- Supplier Product Code: SSLV100S
- Manufacturer Reference: 93031AW
- Product Type: Low Voltage Bathroom Extractor Fan
- Fan Type: Axial
- Colour: White
- Application: Bathrooms, Shower Rooms, En-Suites and Toilets
- Installation Type: Wall or Ceiling Mounted
- Fan Diameter: 100mm (4 Inches)
- Duct Connection Diameter: 98mm
- Number of Speeds: 2
- Airflow (Low Speed): 54m³/h
- Airflow (High Speed): 76m³/h
- Airflow (Low Speed): 15 Litres per Second
- Airflow (High Speed): 21 Litres per Second
- Power Consumption (Low Speed): 5.5W
- Power Consumption (High Speed): 11.8W
- Electrical Supply: 12V SELV via Supplied Transformer
- Motor Type: AC
- Noise Level (Low Speed): 22dB(A) at 3 Metres
- Noise Level (High Speed): 34dB(A) at 3 Metres
- IP Rating: IPX4
- Bathroom Zone Suitability: Zone 1, Subject to Correct Installation
- Timer Function: No
- Pullcord: No
- Humidistat: No
- Switching: External Switch
- Front Grille Dimensions: 178.5 × 178.5mm
- Front Projection: 35.7mm
- Body Depth: 86.5mm
- Manufacturer Guarantee: 2 Years, Subject to Terms
What's in the Box?
- Xpelair Simply Silent LV100S Low Voltage Extractor Fan White
- 12V SELV Transformer
- Wall-Fitting Kit
- Installation Documentation
