Description
Improve ventilation and reduce condensation with the Xpelair Simply Silent C4SR 100mm Extractor Fan. Designed for bathrooms, shower rooms, toilets and cloakrooms, this quiet and energy-efficient extractor fan helps remove excess moisture, unpleasant odours and stale air while maintaining a comfortable indoor environment.
Part of Xpelair's Simply Silent Contour range, the C4SR combines advanced Ghost Air Movement Technology with a sleek, contemporary design. Supplied with both square and round front covers, it offers flexibility to complement different bathroom styles.
Near-Silent Ventilation Technology
The Xpelair C4SR features innovative Ghost Air Movement Technology, designed to minimise noise while maintaining effective extraction performance.
Precision-engineered components and optimised airflow help reduce turbulence, allowing the fan to operate at just 15dB(A) at its lower speed setting, measured at three metres.
This makes it particularly suitable for bathrooms and toilets where quiet operation is important.
Two Selectable Extraction Speeds
The C4SR offers two ventilation speeds, selectable during installation to suit the room's requirements.
At its lower setting, the fan delivers an extraction rate of 54m³/h (15 litres per second). The higher setting increases airflow to 76m³/h (21 litres per second), providing additional ventilation for rooms where greater moisture extraction is required.
With a power consumption of just 6.3W or 7W depending on the selected speed, the fan provides efficient everyday ventilation.

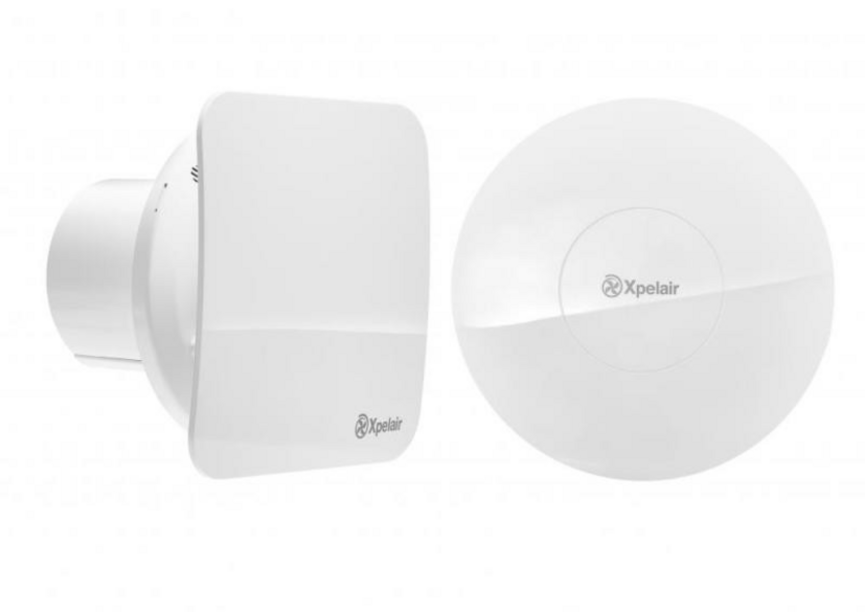

Interchangeable Square and Round Covers
One of the standout features of the Xpelair C4SR is its interchangeable front fascia design.
Both square and round white covers are included, allowing you to choose the appearance that best suits your bathroom or cloakroom.
The smooth, contemporary covers are also easy to remove and clean, helping keep the fan looking its best.
Flexible Installation
Designed for use with 100mm ducting, the C4SR can be installed on suitable walls, ceilings, panels or windows using the appropriate installation accessories.
The integrated backdraught shutter helps reduce unwanted airflow into the room when the fan is switched off.
With an IPX4 splash-resistance rating, the fan is suitable for appropriately located bathroom installations, subject to electrical safety requirements.
Simple and Reliable Operation
The Xpelair C4SR is a standard extractor fan designed to operate through a suitable external switch, such as a bathroom light switch.
Its straightforward operation makes it an excellent choice for replacing an existing bathroom extractor fan or installing ventilation in a new bathroom or cloakroom.
Combining quiet performance, efficient extraction and interchangeable covers, the Xpelair Simply Silent C4SR is a practical and stylish solution for everyday bathroom ventilation.
Key Features
- 100mm Axial Extractor Fan: Suitable for bathrooms, shower rooms, toilets and cloakrooms.
- Ghost Air Movement Technology: Designed to deliver exceptionally quiet ventilation.
- Two Selectable Speeds: Choose between 15L/s and 21L/s during installation.
- Extraction Rate up to 76m³/h: Helps remove moisture, condensation and unwanted odours.
- Quiet Operation: Noise levels as low as 15dB(A) at three metres.
- Square and Round Covers Included: Interchangeable fascia options to suit your bathroom.
- Energy-Efficient Motor: Uses approximately 6.3W to 7W depending on speed.
- Backdraught Shutter: Helps reduce unwanted draughts when the fan is switched off.
- Standard Switch Operation: Designed for use with a suitable external switch.
- IPX4 Splash Protection: Suitable for correctly positioned bathroom installations.
- Flexible Mounting: Suitable for wall, ceiling, panel or window installation with appropriate accessories.
- Easy-Clean Fascia: Removable covers simplify maintenance.
- Contemporary White Finish: Blends neatly with modern bathroom interiors.
- Two-Year Manufacturer Guarantee: Subject to manufacturer terms.
Technical Specifications
- Brand: Xpelair
- Range: Simply Silent Contour
- Model: C4SR
- Manufacturer Part Number: 078339
- Product Type: Axial Extractor Fan
- Colour: White
- Fan Diameter: 100mm / 4 Inches
- Motor Type: AC
- Number of Speeds: 2
- Speed Selection: During Installation
- Low-Speed Extraction: 54m³/h / 15L/s
- High-Speed Extraction: 76m³/h / 21L/s
- Low-Speed Power Consumption: 6.3W
- High-Speed Power Consumption: 7W
- Low-Speed Noise Level: 15dB(A) at 3m
- High-Speed Noise Level: 29dB(A) at 3m
- Operation: Standard External Switch
- Run-On Timer: No
- Humidistat: No
- Pullcord: No
- Backdraught Shutter: Yes
- IP Rating: IPX4
- Front Covers: Interchangeable Square and Round
- Square Fascia Dimensions: 180 × 180mm
- Round Fascia Diameter: Approximately 200mm
- Duct Diameter: 100mm
- Mounting Options: Wall, Ceiling, Panel or Window with Appropriate Accessories
- Electrical Supply: 220–240V AC
- Manufacturer Guarantee: 2 Years
What's in the Box?
- Xpelair Simply Silent C4SR 100mm Extractor Fan White
- Square Front Cover
- Round Front Cover
