Description

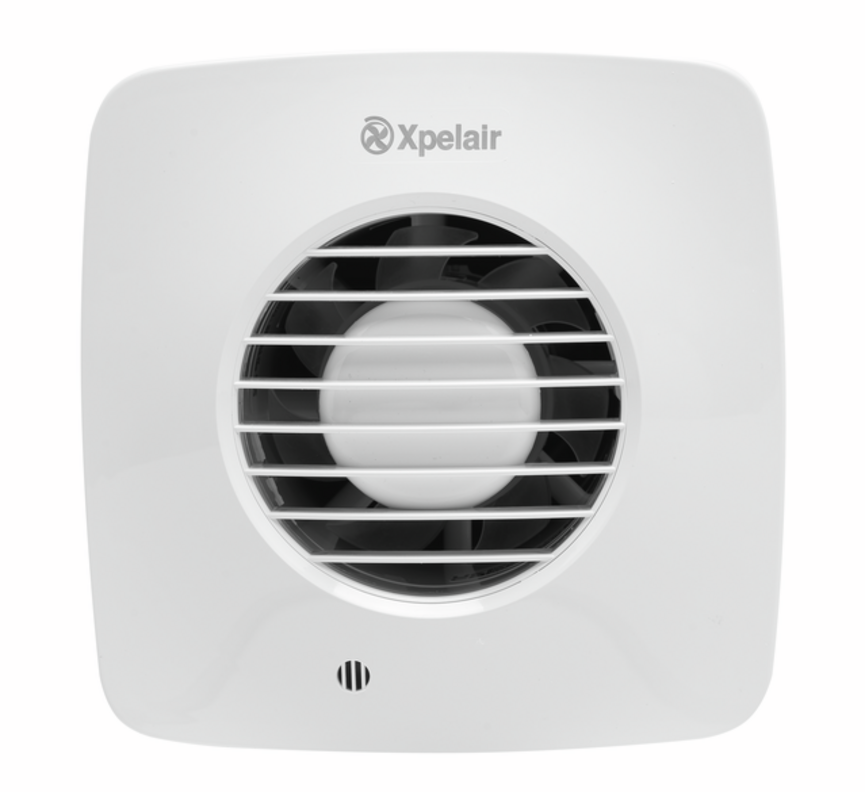

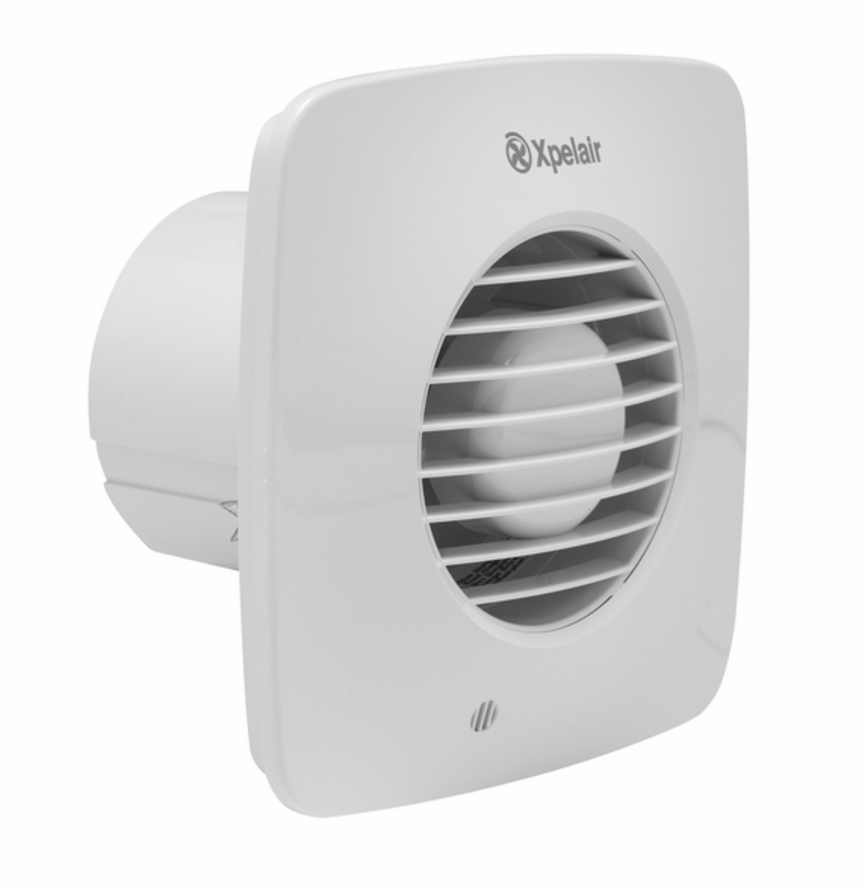

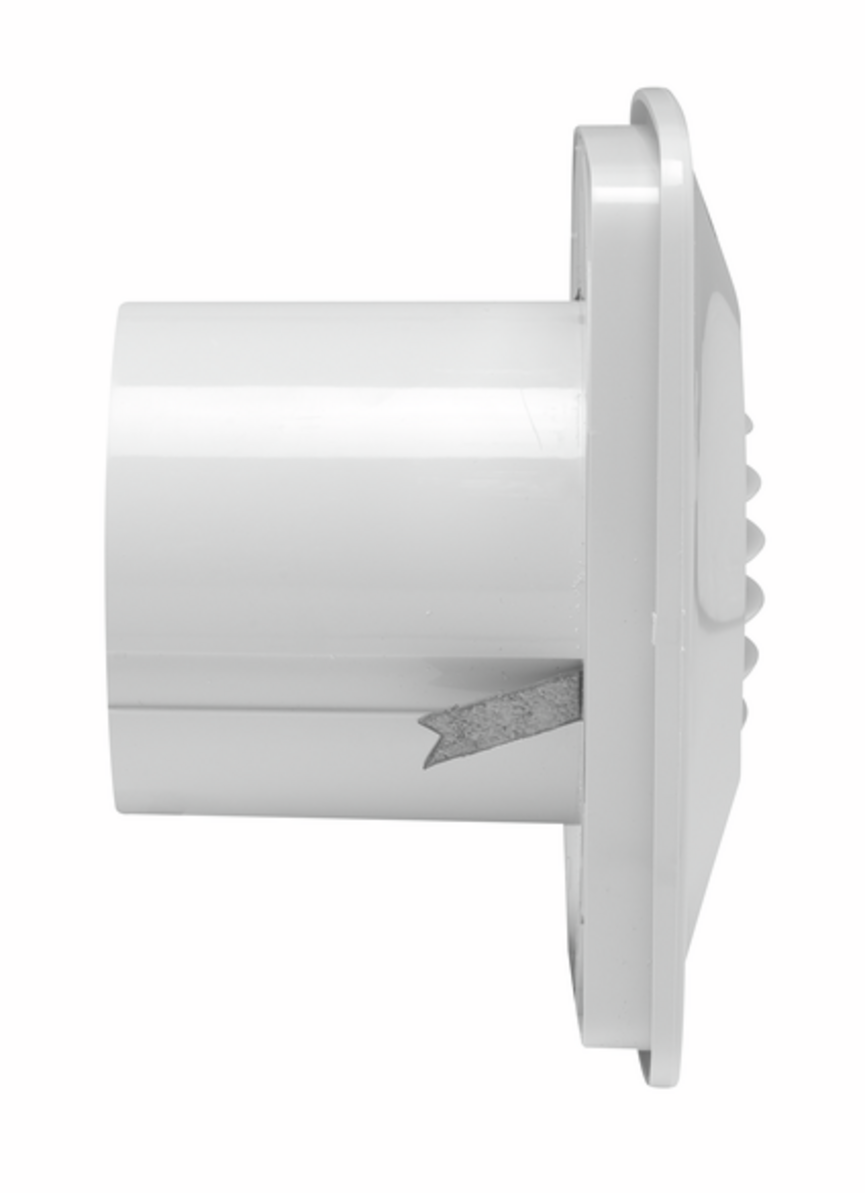

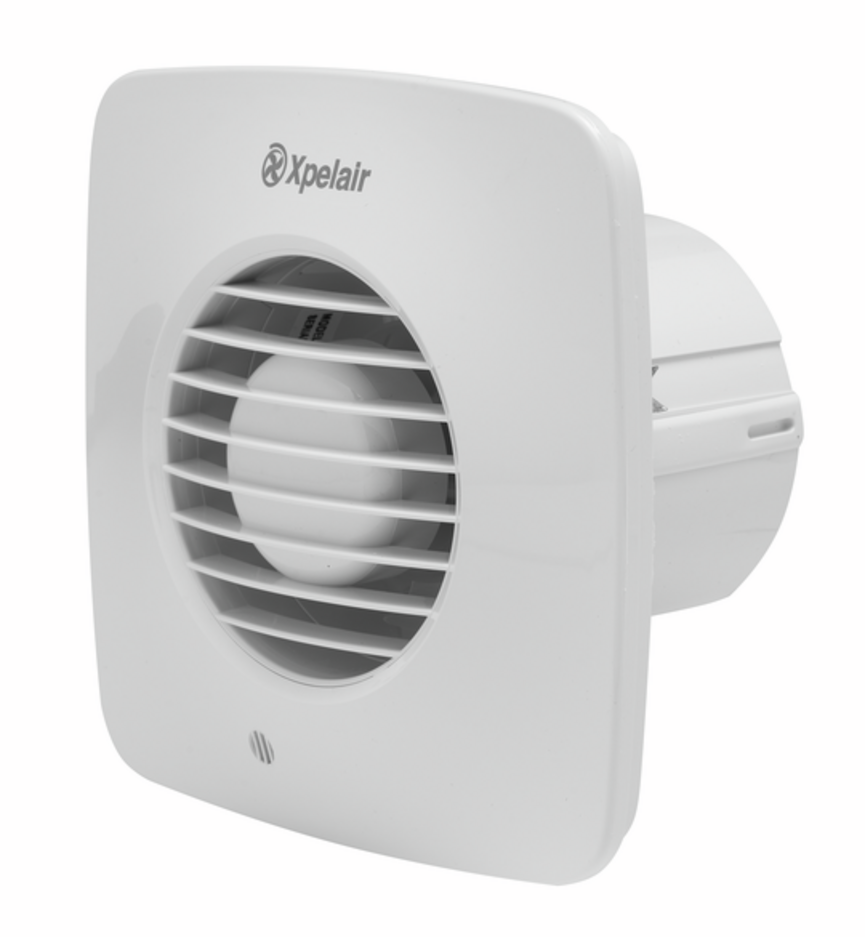

Keep your bathroom fresh, comfortable and properly ventilated with the Xpelair Simply Silent DX100TS Extractor Fan. Designed to provide effective moisture extraction with exceptionally quiet operation, this 100mm (4-inch) bathroom extractor fan is ideal for bathrooms, shower rooms, en-suites, cloakrooms and toilets.
Featuring Xpelair's innovative Ghost Air Movement Technology, two selectable extraction speeds and an adjustable overrun timer, the DX100TS helps remove excess moisture, condensation and unwanted odours while maintaining a peaceful indoor environment.
Quiet and Efficient Bathroom Ventilation
The Xpelair Simply Silent DX100TS uses advanced Ghost Air Movement Technology to deliver effective extraction with minimal operating noise.
With noise levels of just 22dB(A) on its lower setting and 34dB(A) on high speed, measured at 3 metres, this extractor fan is particularly suitable for bathrooms and en-suites where quiet operation is important.
Two Selectable Extraction Speeds
The DX100TS features two extraction speeds, delivering airflow rates of 54m³/h and 76m³/h.
The appropriate speed can be selected during installation to suit the ventilation requirements of your bathroom, helping maintain effective airflow while minimising unnecessary energy consumption.
Adjustable Overrun Timer
The integrated adjustable overrun timer allows the fan to continue operating for between 30 seconds and 30 minutes after switching off.
This convenient feature helps remove lingering steam and moisture after showering, reducing condensation and helping prevent the conditions that encourage mould growth.
The fan can be connected to an external switch or lighting circuit for convenient automatic operation.
Modern Square Design
Featuring a contemporary square grille in a clean white finish, the Xpelair DX100TS blends neatly into a wide range of bathroom interiors.
Its discreet appearance makes it suitable for both modern and traditional bathrooms, while the removable front grille provides convenient access for cleaning.
Flexible Installation with Wall Fitting Kit
The Xpelair DX100TS is suitable for wall or ceiling installation and can also be installed in windows using a separately available compatible window kit.
Supplied with a telescopic wall duct, external grille and installation fixings, the fan provides the essential components for a straightforward wall installation.
Its IPX4 splash-resistant construction and energy-efficient AC motor ensure reliable performance in suitable domestic ventilation applications.
Combining exceptionally quiet operation, effective moisture extraction and a convenient adjustable timer, the Xpelair Simply Silent DX100TS is an excellent choice for maintaining a fresher and more comfortable bathroom.
Key Features
- 100mm (4 Inch) Extractor Fan: Ideal for bathrooms, shower rooms, en-suites and toilets.
- Ghost Air Movement Technology: Designed to provide effective extraction with exceptionally quiet operation.
- Two Selectable Speeds: Extraction rates of 54m³/h and 76m³/h.
- Quiet Performance: Noise levels of just 22dB(A) and 34dB(A) at 3 metres.
- Adjustable Overrun Timer: Continues operating for 30 seconds to 30 minutes after switching off.
- External Switch Operation: Can be connected to a bathroom light switch or separate wall switch.
- IPX4 Splash Resistance: Suitable for appropriately designed bathroom ventilation installations.
- Energy-Efficient Motor: Power consumption of 6W or 6.7W depending on the selected speed.
- Modern Square Grille: Contemporary white finish complements a variety of bathroom interiors.
- Wall or Ceiling Installation: Flexible mounting options for different bathroom layouts.
- Complete Wall Fitting Kit: Includes telescopic ducting and external grille.
- Removable Front Grille: Allows convenient access for cleaning.
- Durable AC Motor: Designed for reliable everyday operation.
- Two-Year Manufacturer Guarantee: Provides additional peace of mind.
Technical Specifications
- Brand: Xpelair
- Range: Simply Silent DX100
- Model: DX100TS
- Manufacturer Reference: 93026AW
- Product Type: Axial Bathroom Extractor Fan
- Colour: White
- Design: Square Grille
- Fan Diameter: 100mm (4 Inches)
- Number of Speeds: 2
- Extraction Rate: 54/76m³/h
- Airflow Rate: 15/21 Litres per Second
- Noise Level: 22/34dB(A) at 3m
- Power Consumption: 6/6.7W
- Voltage: 220–240V
- Timer: Adjustable 30 Seconds to 30 Minutes
- Humidity Control: No
- Pull Cord: No
- Backdraught Shutter: No
- IP Rating: IPX4
- Motor Type: AC
- Installation: Wall or Ceiling Mounted
- Duct Diameter: 100mm
- Height: 178.5mm
- Width: 178.5mm
- Depth: 122.2mm
- Manufacturer Guarantee: 2 Years

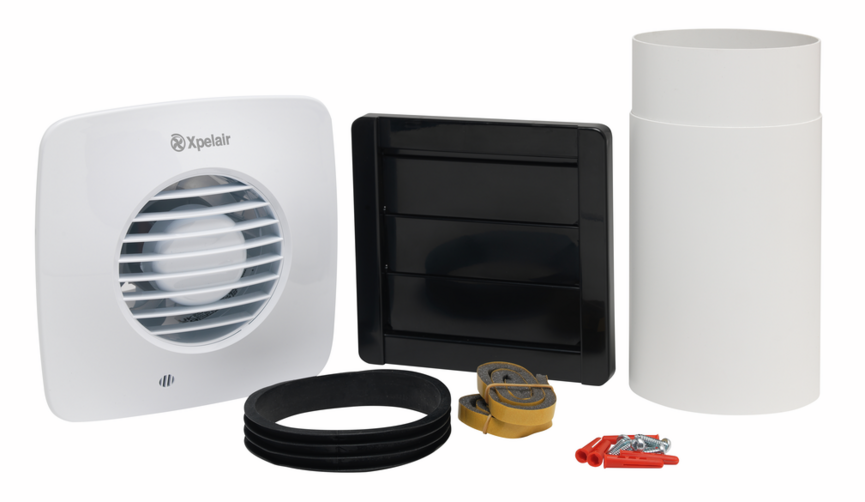

What's in the Box?
- Xpelair Simply Silent DX100TS Extractor Fan
- 300mm Telescopic Wall Duct
- External Grille
- Installation Screws and Wall Plugs
- Installation Instructions
