Description
Enjoy quiet, automatic bathroom ventilation with the Xpelair Simply Silent DX100PIRS Extractor Fan. Designed for bathrooms, shower rooms, en-suites and toilets, this 100mm axial extractor fan features an integrated PIR motion sensor that automatically activates ventilation when movement is detected.
Part of the popular Xpelair Simply Silent range, the DX100PIRS combines modern styling with efficient extraction and low-noise performance. Its innovative Ghost Air Movement Technology helps minimise airflow turbulence and operating noise, making it ideal for residential bathrooms and other spaces where quiet ventilation is important.
The integrated Passive Infrared (PIR) sensor detects movement and automatically switches on the fan, eliminating the need for manual operation. A built-in overrun timer allows the fan to continue extracting air after movement is no longer detected, helping remove lingering moisture and unwanted odours.
Featuring two selectable speeds and extraction rates of up to 76m³/h, the DX100PIRS provides effective ventilation while maintaining low energy consumption.
Its contemporary white square grille complements modern interiors, while the compact design allows flexible wall or ceiling installation.
With IPX4 splash resistance and a two-year manufacturer's guarantee, the Xpelair Simply Silent DX100PIRS provides a convenient and dependable solution for automatic bathroom ventilation.
Key Features
- Automatic PIR Motion Detection: Integrated Passive Infrared sensor activates the fan when movement is detected.
- Built-In Overrun Timer: Continues ventilation for an adjustable period after movement stops.
- Quiet Operation: Simply Silent technology minimises airflow turbulence and operating noise.
- 100mm Axial Extractor Fan: Ideal for bathrooms, shower rooms, en-suites and toilets.
- Two Selectable Speeds: Choose between low and high extraction settings during installation.
- Effective Air Extraction: Delivers airflow of 54m³/h or 76m³/h depending on the selected speed.
- Low Noise Levels: Operates at approximately 22dB(A) on low speed and 34dB(A) on high speed, measured at 3 metres.
- Energy-Efficient Performance: Low electrical power consumption of approximately 6.0W or 6.7W.
- Modern Square Grille: Contemporary white finish complements a wide range of bathroom interiors.
- Wall or Ceiling Installation: Flexible mounting options for different room layouts.
- IPX4 Splash Resistance: Designed for suitable moisture-prone environments.
- Automatic Operation: Motion-activated ventilation removes the need for a separate manual switch during normal use.
- Compact Construction: Designed for straightforward installation in standard 100mm ventilation openings.
- Wall-Fitting Kit Included: Supplied with accessories for suitable wall installations.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Range: Simply Silent DX100
- Model: DX100PIRS
- Product Code: DX100PIRS
- Manufacturer Reference: 93030AW
- Product Type: PIR Bathroom Extractor Fan
- Fan Type: Axial
- Colour: White
- Grille Design: Square
- Application: Bathrooms, Shower Rooms, En-Suites and Toilets
- Installation Type: Wall or Ceiling Mounted
- Fan Diameter: 100mm (4 Inches)
- Duct Connection Diameter: 98mm
- Number of Speeds: 2
- Airflow (Low Speed): 54m³/h
- Airflow (High Speed): 76m³/h
- Airflow (Low Speed): 15 Litres per Second
- Airflow (High Speed): 21 Litres per Second
- Power Consumption (Low Speed): 6.0W
- Power Consumption (High Speed): 6.7W
- Motor Type: AC
- Noise Level (Low Speed): 22dB(A) at 3 Metres
- Noise Level (High Speed): 34dB(A) at 3 Metres
- PIR Motion Sensor: Yes
- Automatic Activation: Yes
- Overrun Timer: Yes
- Timer Range: Up to 20 Minutes
- Humidistat: No
- Pullcord: No
- IP Rating: IPX4
- Front Grille Dimensions: 178.5 × 178.5mm
- Front Projection: 35.7mm
- Body Depth: 86.5mm
- Manufacturer Guarantee: 2 Years, Subject to Terms

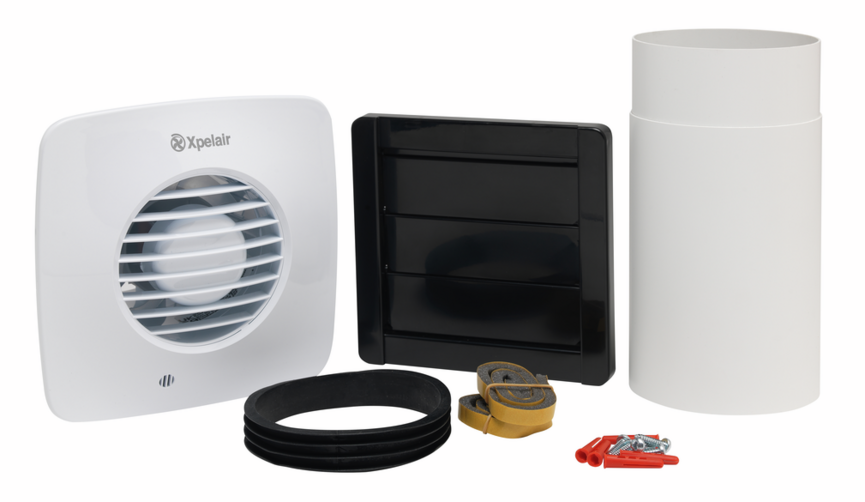

What's in the Box?
- Xpelair Simply Silent DX100PIRS PIR Extractor Fan White
- Wall-Fitting Kit
- Installation Documentation
