Description
Maintain a fresher, healthier and more comfortable indoor environment with the Xpelair Simply Silent CV4SR Extractor Fan. Designed for continuous ventilation in bathrooms, shower rooms, kitchens and utility areas, this advanced 100mm (4-inch) extractor fan combines exceptionally quiet operation with intelligent humidity control and energy-efficient performance.
Featuring Xpelair's innovative Intelligent Adaptiflow technology, an integrated humidistat and an adjustable overrun timer, the CV4SR automatically adapts its performance to maintain consistent airflow while helping reduce excess moisture, condensation and unwanted odours.
Intelligent Constant Volume Ventilation
Unlike conventional extractor fans, the Xpelair CV4SR uses Intelligent Adaptiflow technology to maintain a consistent extraction rate.
An integrated airflow sensor continuously monitors ventilation performance and automatically adjusts the fan speed to compensate for changes in airflow resistance.
This helps ensure reliable extraction performance, even when external conditions or ducting resistance change.
Automatic Humidity Control
The built-in adjustable humidistat monitors moisture levels and automatically increases ventilation when humidity rises above the selected threshold.
With an adjustable humidity range of 50% to 90% relative humidity, the fan responds to moisture generated by showering, bathing and other everyday activities.
This intelligent operation helps reduce condensation and the conditions that encourage mould growth, making it particularly suitable for bathrooms and shower rooms.
Exceptionally Quiet Operation
Featuring Xpelair's advanced Ghost Air Movement Technology, the Simply Silent CV4SR provides effective ventilation with minimal operating noise.
With noise levels reaching a maximum of approximately 28dB(A) at 3 metres, the fan is designed to operate discreetly without disturbing everyday activities.
Its quiet performance makes it an excellent choice for en-suites, bathrooms and other areas where continuous ventilation is required.
Selectable Bathroom and Kitchen Extraction
The Xpelair CV4SR offers dedicated bathroom and kitchen ventilation settings, each with three selectable extraction rates.
Bathroom airflow settings provide extraction rates of 18m³/h, 29m³/h and 65m³/h, while kitchen settings deliver 29m³/h, 47m³/h and 65m³/h.
These selectable settings allow installers to configure the fan according to the ventilation requirements of the room.
Adjustable Overrun Timer
The integrated adjustable overrun timer allows the fan to continue operating at an increased extraction rate for between 30 seconds and 30 minutes after activation.
This helps remove lingering moisture and odours after showering or other activities that increase indoor humidity.
Energy-Efficient DC Motor
The CV4SR features an efficient DC motor designed to provide reliable continuous ventilation with minimal electricity consumption.
Depending on the selected operating mode, power consumption ranges from approximately 1.6W to 2.9W.
This makes the fan particularly suitable for continuous operation in homes where effective ventilation and energy efficiency are important.
Flexible Installation and Modern Design

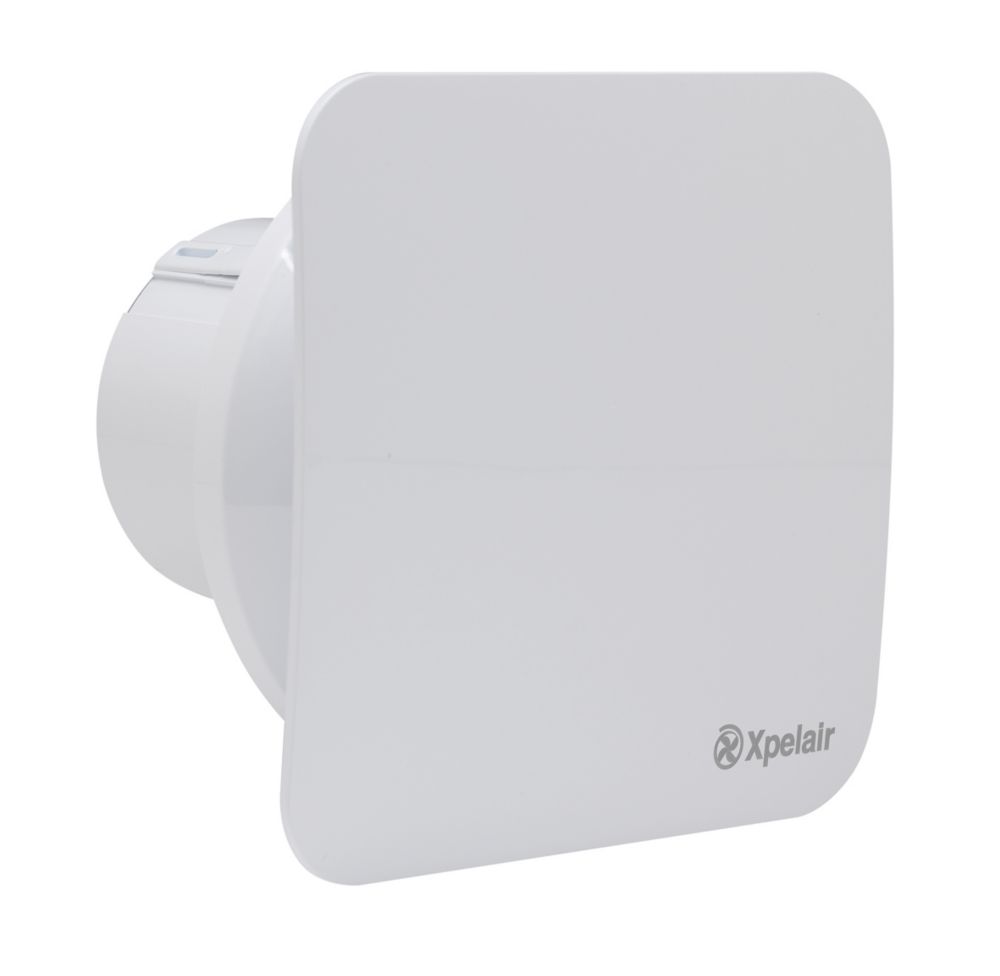

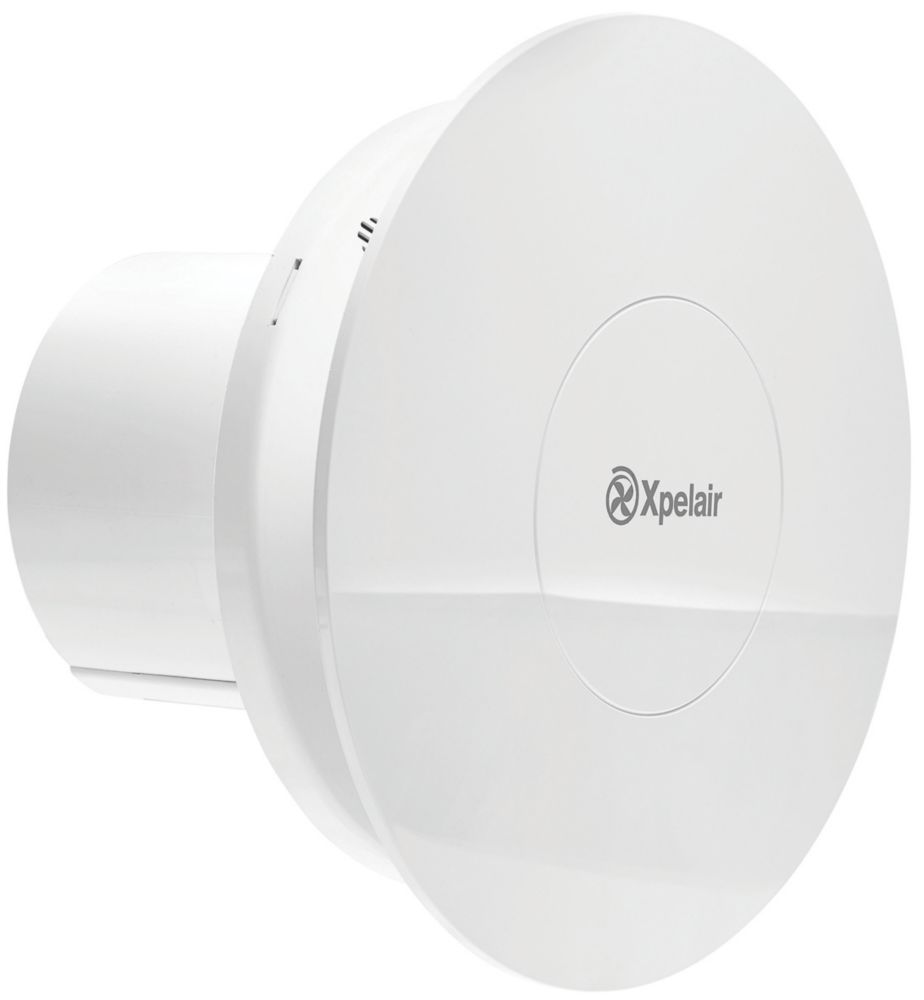

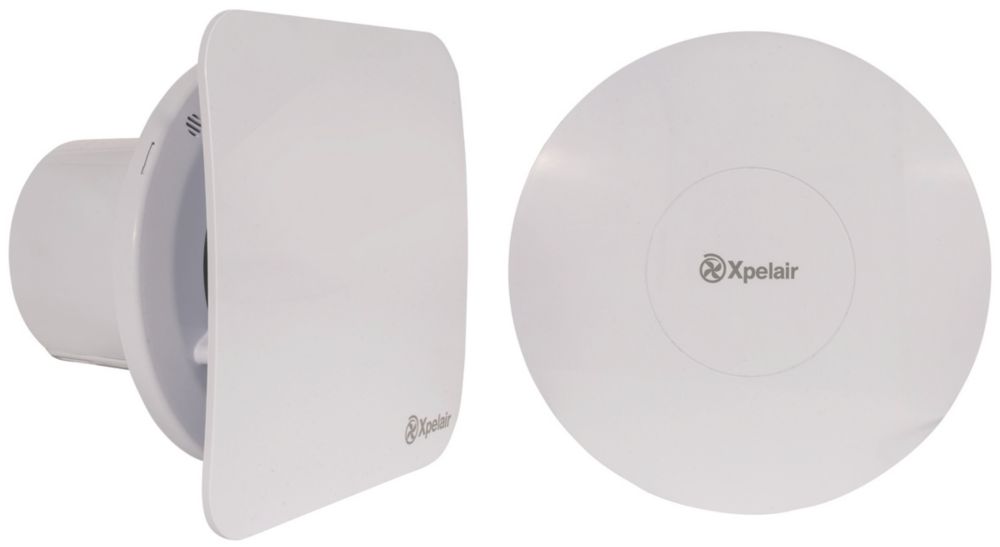

Supplied with both square and circular white front covers, the Xpelair CV4SR allows you to choose the appearance that best complements your interior.
The fan is suitable for wall or ceiling installation, with compatible accessories available for alternative mounting arrangements.
Its IPX4 splash-resistant construction provides additional protection for suitable bathroom installations.
Combining intelligent airflow management, automatic humidity sensing and exceptionally quiet operation, the Xpelair Simply Silent CV4SR offers an advanced solution for maintaining comfortable indoor air quality.
Key Features
- 100mm (4 Inch) Extractor Fan: Ideal for bathrooms, shower rooms, kitchens, en-suites and utility rooms.
- Intelligent Adaptiflow Technology: Automatically adjusts fan speed to maintain consistent airflow.
- Constant Volume Ventilation: Designed for continuous extraction and effective moisture management.
- Automatic Humidity Control: Built-in humidistat responds to increased moisture levels.
- Adjustable Humidistat: Humidity activation settings from 50% to 90% RH.
- Three Selectable Speeds: Dedicated bathroom and kitchen airflow settings.
- Maximum Extraction Rate of 65m³/h: Provides effective ventilation for domestic applications.
- Ghost Air Movement Technology: Delivers exceptionally quiet operation.
- Low Noise Levels: Maximum sound pressure of approximately 28dB(A) at 3 metres.
- Adjustable Overrun Timer: Configurable from 30 seconds to 30 minutes.
- Energy-Efficient DC Motor: Low power consumption from approximately 1.6W to 2.9W.
- Integrated Datalogger: Records operating information for ventilation monitoring.
- Two Interchangeable Covers: Supplied with square and circular white front grilles.
- IPX4 Splash Resistance: Suitable for appropriately designed bathroom installations.
- Wall or Ceiling Installation: Flexible mounting options for domestic ventilation.
- Five-Year Motor Guarantee: Subject to manufacturer's warranty conditions.
Technical Specifications
- Brand: Xpelair
- Range: Simply Silent CV4
- Model: CV4SR
- Manufacturer Reference: 078377
- Product Type: Constant Volume Extractor Fan
- Colour: White
- Fan Diameter: 100mm (4 Inches)
- Motor Type: DC
- Number of Speeds: 3 per operating mode
- Bathroom Extraction Rates: 18/29/65m³/h
- Kitchen Extraction Rates: 29/47/65m³/h
- Maximum Airflow: 18 Litres per Second
- Maximum Noise Level: 28dB(A) at 3m
- Bathroom Power Consumption: 1.6/1.9/2.9W
- Kitchen Power Consumption: 1.9/2.3/2.9W
- Humidity Control: Yes
- Humidistat Range: 50–90% RH
- Overrun Timer: Adjustable 30 Seconds to 30 Minutes
- Intelligent Adaptiflow: Yes
- Continuous Running Capability: Yes
- Integrated Datalogger: Yes
- IP Rating: IPX4
- Voltage: 220–240V
- Installation: Wall or Ceiling Mounted
- Duct Diameter: 100mm
- Square Cover Dimensions: 180 × 180mm
- Circular Cover Diameter: 200mm
- Motor Guarantee: 5 Years
What's in the Box?
- Xpelair Simply Silent CV4SR Extractor Fan
- Square White Front Cover
- Circular White Front Cover
- Installation Instructions
