Keep your bathroom fresh, comfortable and free from excess moisture with the Xpelair Simply Silent C4HTSR Extractor Fan. Combining exceptionally quiet operation with automatic humidity control and an adjustable overrun timer, this 100mm (4-inch) extractor fan provides effective ventilation for bathrooms, shower rooms, en-suites, cloakrooms and toilets.
Part of Xpelair's Simply Silent Contour range, the C4HTSR features advanced Ghost Air Movement Technology, two selectable extraction speeds and interchangeable front covers, offering an excellent combination of performance, convenience and contemporary design.
Automatic Humidity Control
The Xpelair C4HTSR features an integrated humidistat that automatically activates the extractor fan when moisture levels rise above the selected threshold.
With adjustable humidity sensitivity, the fan responds to excess moisture generated by showering and bathing, helping reduce condensation and the conditions that encourage mould growth.
This automatic operation makes it particularly useful for bathrooms where effective moisture management is essential.
Exceptionally Quiet Operation
Featuring Xpelair's innovative Ghost Air Movement Technology, the Simply Silent C4HTSR provides effective ventilation while minimising operating noise.
With noise levels of just 15dB(A) on its lower setting and 29dB(A) on high speed, measured at 3 metres, this extractor fan is ideal for bathrooms and en-suites where quiet operation is important.
Two Selectable Extraction Speeds
The C4HTSR offers two selectable extraction speeds, delivering airflow rates of 54m³/h and 76m³/h.
The appropriate speed can be selected during installation to suit the ventilation requirements of the room.
Its efficient AC motor consumes just 6.3W on low speed and 7W on high speed, providing effective extraction with minimal electricity consumption.
Adjustable Overrun Timer
The integrated adjustable overrun timer allows the fan to continue operating for between 30 seconds and 30 minutes after being switched off.
This convenient feature helps remove lingering steam, moisture and unwanted odours after showering.
Combined with the automatic humidistat, the timer provides additional flexibility for maintaining comfortable bathroom conditions.
Interchangeable Square and Circular Covers

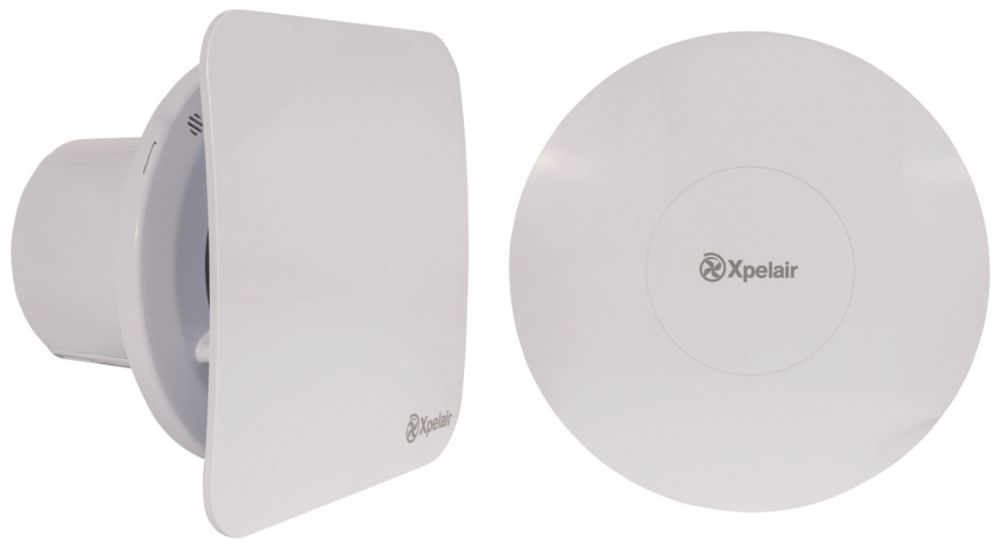

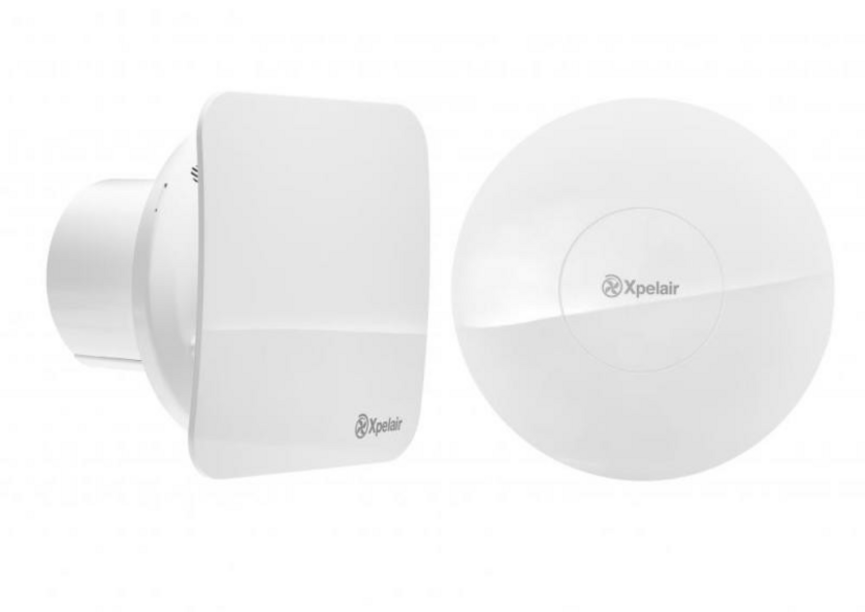

The Xpelair Simply Silent C4HTSR is supplied with both square and circular white front covers, allowing you to choose the design that best complements your bathroom.
The contemporary Contour styling blends neatly into modern and traditional interiors, while the removable front cover provides convenient access for cleaning.
Flexible Installation
Designed for installation in 100mm ventilation systems, the Xpelair C4HTSR is suitable for wall, ceiling, panel and compatible window installations.

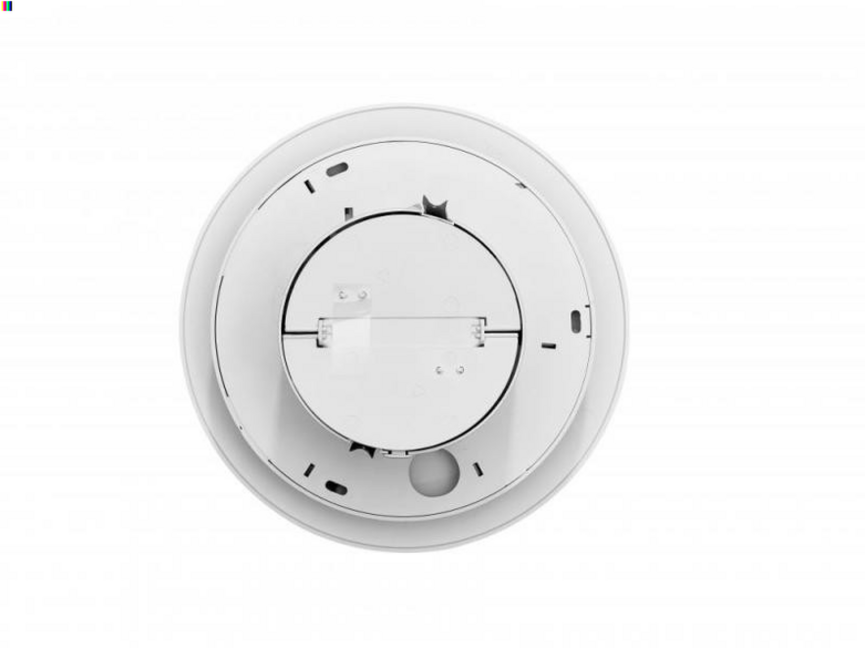

An integrated backdraught shutter helps reduce unwanted airflow when the fan is switched off.
Its IPX4 splash-resistant construction makes it suitable for appropriately designed bathroom installations when fitted in accordance with the manufacturer's instructions and electrical regulations.
Combining intelligent humidity control, quiet operation and flexible installation options, the Xpelair Simply Silent C4HTSR offers a reliable solution for improving bathroom ventilation.
Key Features
- 100mm (4 Inch) Extractor Fan: Ideal for bathrooms, shower rooms, en-suites, cloakrooms and toilets.
- Automatic Humidity Control: Integrated humidistat activates ventilation when humidity levels rise.
- Adjustable Humidistat: Humidity activation threshold adjustable from 50% to 90% relative humidity.
- Ghost Air Movement Technology: Provides exceptionally quiet ventilation.
- Two Selectable Speeds: Extraction rates of 54m³/h and 76m³/h.
- Ultra-Quiet Operation: Noise levels of just 15dB(A) and 29dB(A) at 3 metres.
- Adjustable Overrun Timer: Continues operating for 30 seconds to 30 minutes after switching off.
- Energy-Efficient Motor: Power consumption of just 6.3W or 7W.
- Interchangeable Front Covers: Supplied with square and circular white grilles.
- Integrated Backdraught Shutter: Helps prevent unwanted airflow when the fan is switched off.
- IPX4 Splash Resistance: Suitable for appropriately installed bathroom ventilation systems.
- Flexible Installation: Suitable for wall, ceiling, panel and compatible window mounting.
- Durable AC Motor: Designed for dependable everyday operation.
- Two-Year Manufacturer Guarantee: Provides additional peace of mind.
Technical Specifications
- Brand: Xpelair
- Range: Simply Silent Contour C4
- Model: C4HTSR
- Manufacturer Reference: 078360
- Product Type: Bathroom Extractor Fan
- Colour: White
- Design: Interchangeable Square and Circular Covers
- Fan Diameter: 100mm (4 Inches)
- Number of Speeds: 2
- Extraction Rate: 54/76m³/h
- Airflow Rate: 15/21 Litres per Second
- Noise Level: 15/29dB(A) at 3m
- Power Consumption: 6.3/7W
- Voltage: 220–240V
- Motor Type: AC
- Humidity Control: Yes
- Humidistat Range: 50–90% RH
- Overrun Timer: Adjustable 30 Seconds to 30 Minutes
- Backdraught Shutter: Yes
- IP Rating: IPX4
- Installation: Wall, Ceiling, Panel or Compatible Window
- Duct Diameter: 100mm
- Square Cover Dimensions: 180 × 180mm
- Circular Cover Diameter: 200mm
- Overall Depth: 131mm
- Manufacturer Guarantee: 2 Years
