Description
Reduce condensation, humidity and unwanted odours with the Xpelair Simply Silent C4TSR 100mm Extractor Fan. Designed for bathrooms, shower rooms, cloakrooms and toilets, this compact axial fan combines effective ventilation with exceptionally quiet operation.
Xpelair's Ghost Air Movement Technology uses a long-life motor and precision-engineered components to minimise mechanical noise. The C4TSR offers two selectable speeds, producing sound levels of just 15dB(A) at 3 metres on its lower setting, making it particularly suitable for bathrooms and en-suites where a noisy extractor fan can be disruptive.
The fan provides two extraction rates of 54 or 76m³/h (15 or 21 litres per second), with the required speed selected during installation. This gives the installer flexibility to configure the fan according to the ventilation requirements of the room.
A key feature of the C4TSR is its adjustable overrun timer. The fan can be activated through an external switch, such as the bathroom light circuit, and once the switch is turned off, the extractor continues running for a preset period. The timer can be adjusted from approximately 30 seconds to 30 minutes, allowing remaining moisture and humid air to continue being extracted after you leave the room.
The C4 range is also particularly flexible when it comes to installation. It is suitable for wall, ceiling, panel and window fitting, and uses standard 100mm / 4-inch ducting. An integrated backdraught shutter helps reduce unwanted reverse airflow when the fan isn't operating.

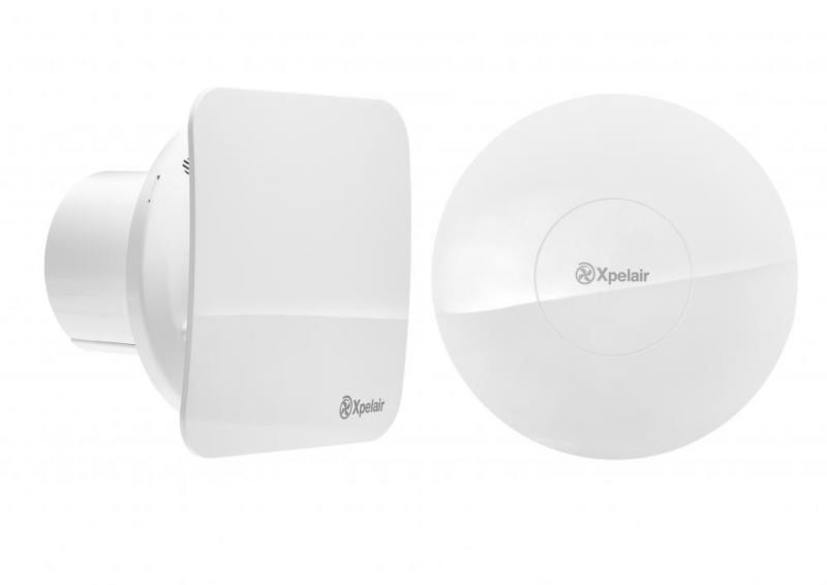

Both square and round interchangeable front covers are supplied, allowing the appearance of the fan to be matched more easily to your bathroom or installation. The square fascia measures approximately 180 x 180mm, while the alternative round cover is approximately 200mm in diameter.
With its discreet white finish, low running noise and adjustable timer, the Xpelair Simply Silent C4TSR is a practical choice for improving everyday ventilation while keeping bathroom noise to a minimum.
Key Features
- 4 inch / 100mm axial extractor fan
- Designed for bathrooms, shower rooms, cloakrooms and toilets
- Xpelair Ghost Air Movement Technology
- Near-silent operation
- 2 speeds selectable during installation
- Extraction rate: 15 / 21 litres per second
- Extraction rate: 54 / 76m³/h
- Noise level at 3m: 15 / 29dB(A)
- Adjustable overrun timer from 30 seconds to 30 minutes
- Can be activated using an external switch or lighting circuit
- Integrated backdraught shutter
- AC motor
- Low power consumption: 6.3 / 7W
- IPX4 rated
- Suitable for wall installation
- Suitable for ceiling installation
- Suitable for panel installation
- Suitable for window installation with appropriate installation kit
- 100mm duct size
- Square and round interchangeable covers included
- White finish
- Square fascia approximately 180 x 180mm
- Round fascia approximately 200mm diameter
- 2 year manufacturer guarantee
What's in the Box?
- Xpelair Simply Silent C4TSR Extractor Fan
- Square Front Cover
- Round Front Cover
- Backdraught Shutter
- Installation Documentation
