Description

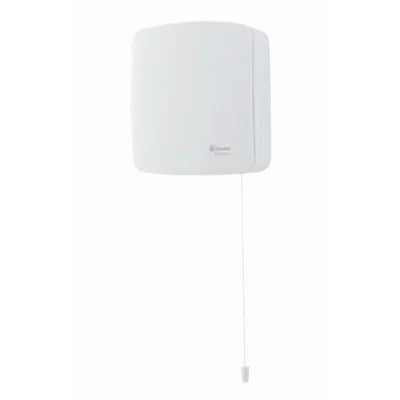

Improve ventilation and help control condensation with the Xpelair Premier LVCF20TX SELV Centrifugal Extractor Fan. Designed for bathrooms, shower rooms, toilets, utility rooms and kitchens, this versatile ventilation fan combines powerful extraction, automatic humidity control and low-voltage operation for suitable wet-area installations.
Supplied with a separate Safety Extra Low Voltage (SELV) transformer, the LVCF20TX is particularly suitable for bathroom and shower room installations where additional electrical safety precautions are required.
Powerful Centrifugal Ventilation
Unlike conventional axial extractor fans, the Xpelair Premier LVCF20TX uses centrifugal technology, making it particularly effective for installations with longer duct runs.
With four selectable ventilation speeds and a maximum intermittent extraction rate of 219.5m³/h, the fan can be configured to provide the appropriate airflow for toilets, bathrooms, utility rooms and kitchens.
The integrated room selector allows installers to choose the ventilation performance required for each application.
Safety Extra Low Voltage Operation
The LVCF20TX comes complete with a separate SELV transformer, allowing the fan to operate at a safer extra-low voltage in suitable bathroom and shower room locations.
Its IPX5 protection rating provides resistance to water jets, while the separate transformer arrangement makes it suitable for correctly designed installations in bathroom Zone 1, subject to the manufacturer's instructions and applicable electrical regulations.
Automatic Humidity Control
An integrated humidistat monitors moisture levels and activates or boosts ventilation when humidity rises above the selected threshold.
Adjustable between 50% and 90% relative humidity, this feature helps remove excess moisture following showers, baths and other everyday activities.
Automatic humidity control is particularly useful for reducing condensation and maintaining a fresher indoor environment.
Adjustable Timer and Boost Function
The built-in run-on timer allows the fan to continue operating after activation, helping remove lingering moisture and odours.
The timer can be adjusted from approximately 30 seconds to 30 minutes.
A convenient pullcord provides manual boost control, while compatible external switching arrangements can also be used to activate additional ventilation.
Continuous or Intermittent Operation
The Xpelair LVCF20TX can be configured during installation for either intermittent extraction or continuous decentralised mechanical extract ventilation (dMEV).
Continuous operation provides background ventilation throughout the day, with higher airflow available when required.
Its energy-efficient brushless DC motor helps keep electricity consumption low, making it suitable for regular or continuous use.
Practical Installation and Maintenance
Featuring a clean gloss-white ABS casing, the Premier LVCF20TX blends neatly into modern bathrooms, shower rooms and utility spaces.
Designed for 100mm ducting, the fan can be wall-mounted or ceiling-mounted to suit different installation requirements.
An integrated datalogger records fan operating time, providing useful information for landlords and property managers.
Combining flexible ventilation settings, automatic moisture control and SELV electrical protection, the Xpelair Premier LVCF20TX is a practical solution for improving ventilation in moisture-prone rooms.
Key Features
- SELV Low-Voltage Operation: Supplied with a separate transformer for suitable bathroom and shower room installations.
- Centrifugal Extraction Technology: Particularly effective for longer duct runs.
- Maximum Extraction Rate of 219.5m³/h: Powerful intermittent ventilation for removing moisture and odours.
- Four Selectable Speeds: Configure airflow to suit the installation.
- Built-In Humidistat: Automatically responds to increased moisture levels.
- Adjustable Humidity Setting: Select between 50% and 90% relative humidity.
- Adjustable Run-On Timer: Set continued ventilation between 30 seconds and 30 minutes.
- Pullcord Boost Control: Convenient manual activation of additional extraction.
- Continuous or Intermittent Operation: Suitable for standard extraction or continuous dMEV ventilation.
- Room Selector: Configurable for toilets, bathrooms, utility rooms and kitchens.
- Energy-Efficient Brushless DC Motor: Designed for reliable, low-power operation.
- 100mm Duct Connection: Compatible with suitable 4-inch ventilation ducting.
- IPX5 Protection Rating: Suitable for specified wet-area installations.
- Wall or Ceiling Installation: Flexible mounting options.
- Integrated Datalogger: Records fan operating time.
- Gloss White Finish: Contemporary appearance suitable for modern interiors.
- Two-Year Manufacturer Guarantee: With a five-year guarantee on the motor, subject to terms.
Technical Specifications
- Brand: Xpelair
- Range: Premier
- Model: LVCF20TX
- Manufacturer Part Number: 067333
- Product Type: SELV Centrifugal Extractor Fan
- Colour: Gloss White
- Housing Material: ABS Plastic
- Fan Technology: Centrifugal
- Motor Type: Brushless DC
- Electrical Configuration: Safety Extra Low Voltage with Separate Transformer
- SELV Transformer: Included
- Number of Speeds: 4
- Maximum Intermittent Airflow: 219.5m³/h / 61L/s
- Intermittent Airflow Settings: 30.5 / 63 / 124 / 219.5m³/h
- Continuous Airflow Settings: 30.5 / 34 / 47 / 76m³/h
- Intermittent Power Consumption: 4 / 6 / 13 / 29.8W
- Continuous Power Consumption: 4 / 4 / 5 / 7W
- Intermittent Noise Levels at 3m: 21 / 36 / 44 / 54dB(A)
- Continuous Noise Levels at 3m: 21 / 28 / 27 / 37dB(A)
- Humidistat: Integrated
- Humidity Adjustment: 50–90% RH
- Run-On Timer: 30 Seconds to 30 Minutes
- Pullcord: Yes
- Continuous Ventilation: Yes
- Intermittent Ventilation: Yes
- Datalogger: Yes
- Duct Diameter: 100mm
- IP Rating: IPX5
- Width: 234.3mm
- Height: 276.8mm
- Depth: 137.4mm
- Installation Type: Wall or Ceiling Mounted
- Manufacturer Guarantee: 2 Years, 5 Years on Motor
What's in the Box?
- Xpelair Premier LVCF20TX SELV Centrifugal Extractor Fan White
- Separate SELV Transformer
- Manufacturer Installation Instructions
