Description

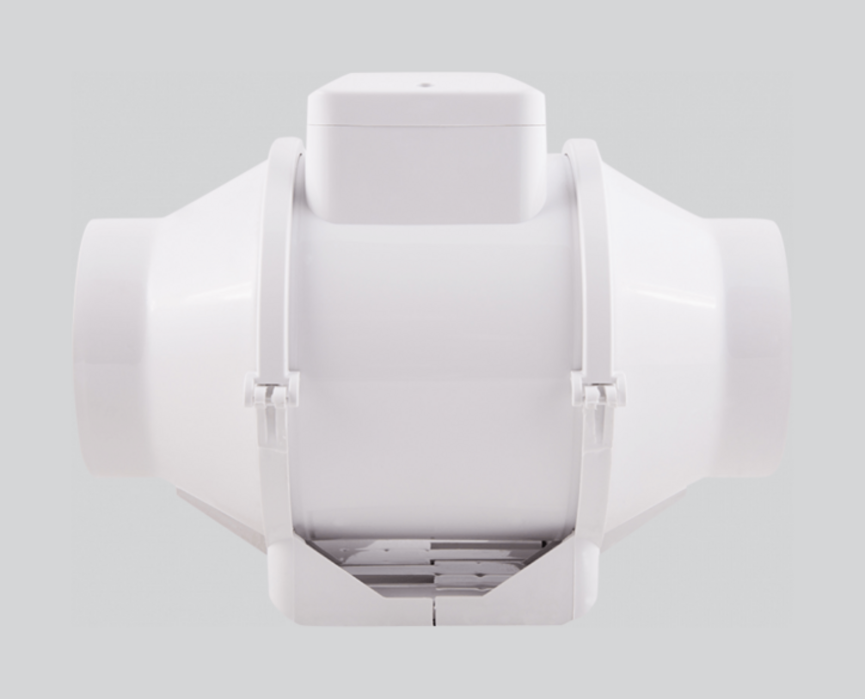

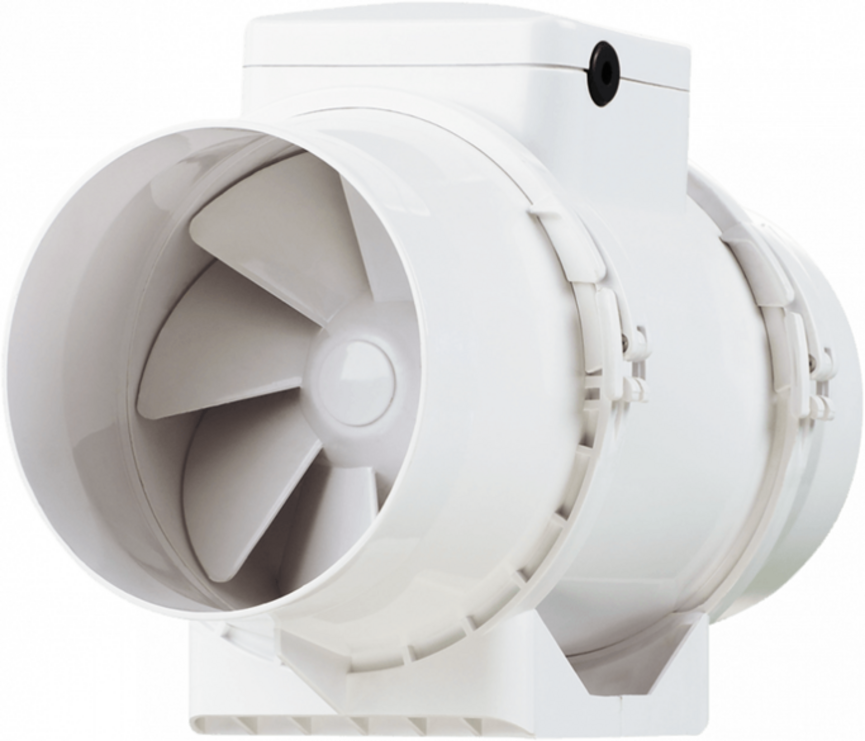

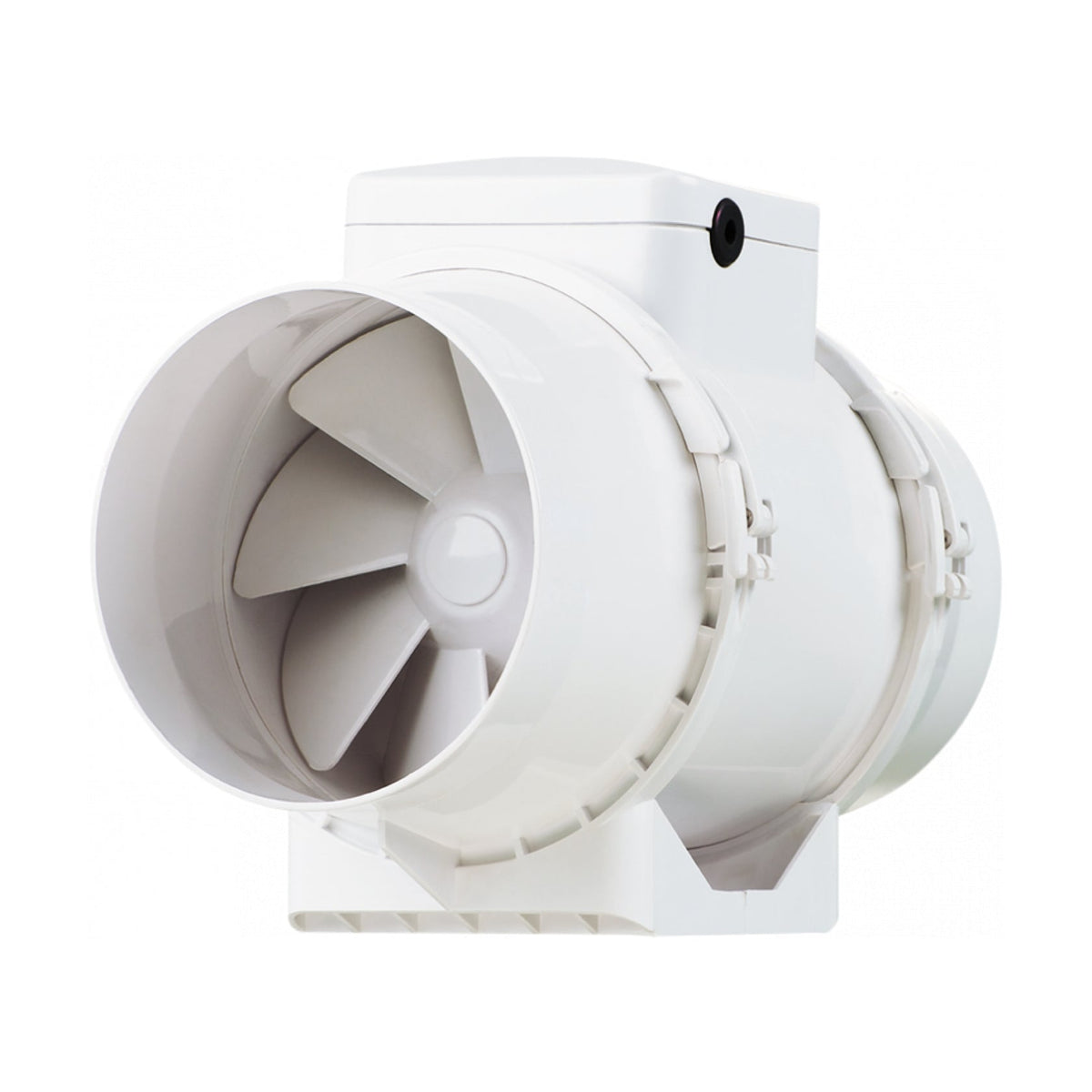

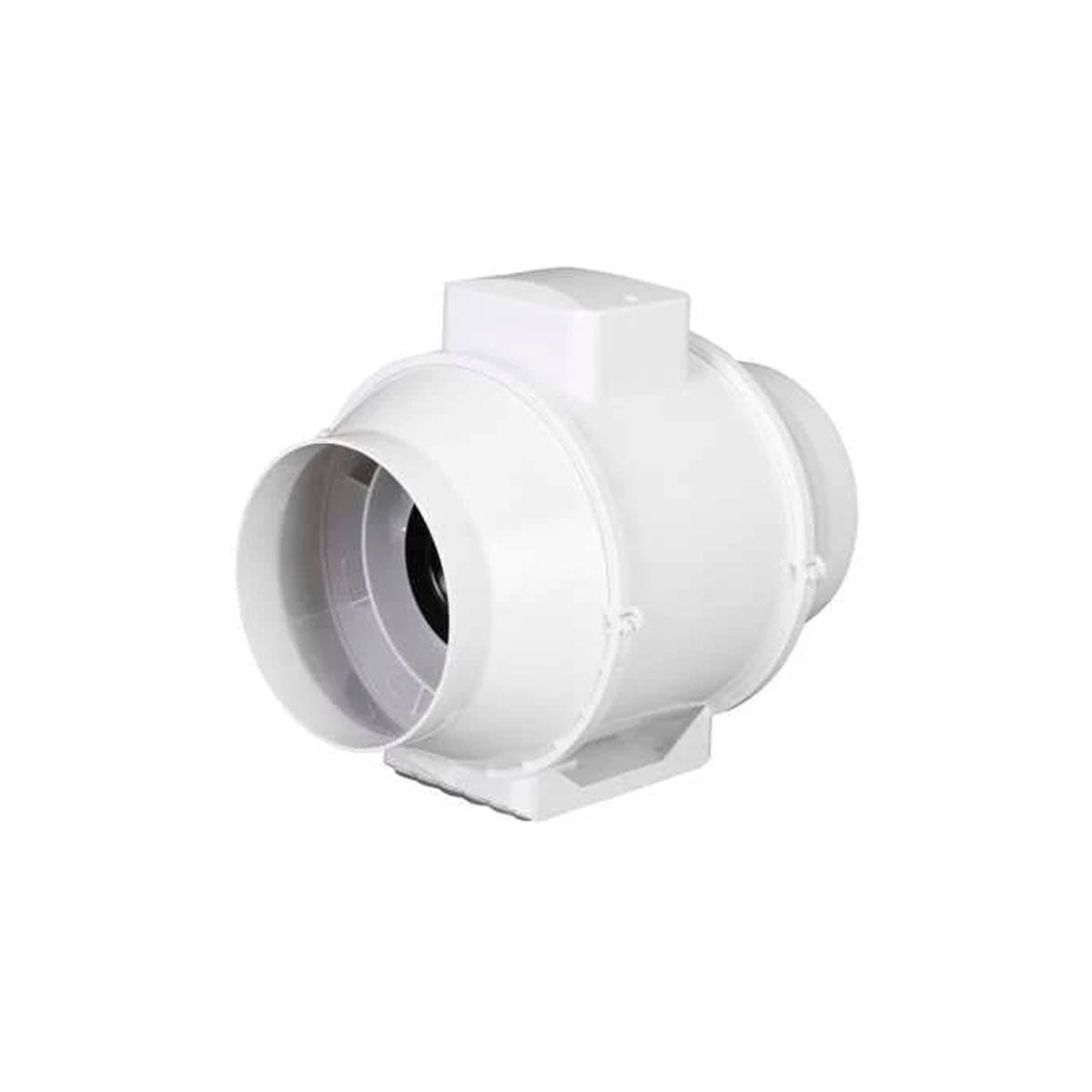

Improve airflow and ventilation with the Xpelair XIMX150 Inline Mixed Flow Duct Fan. Designed for domestic and light commercial applications, this powerful 150mm extractor fan provides efficient air extraction to help remove excess moisture, stale air and unwanted odours.
Featuring advanced mixed flow technology, the XIMX150 combines the airflow performance of an axial fan with the pressure capabilities of a centrifugal fan. This makes it particularly suitable for ducted ventilation systems where reliable extraction is required.
With two selectable speeds and a maximum extraction rate of 520m³/h, the Xpelair XIMX150 delivers excellent ventilation performance for bathrooms, utility rooms and other areas requiring effective air circulation.
Designed for convenient installation, the fan can be mounted within a loft or suitable ceiling void, allowing the motor to be positioned away from the ventilated room. An integrated mounting cradle simplifies installation and maintenance, while the easily accessible terminal box makes electrical connections straightforward.
The durable construction, IPX4 splash resistance and maintenance-free motor make the XIMX150 a dependable solution for long-term ventilation requirements.
Key Features
- Powerful Air Extraction: Maximum airflow of 520m³/h for effective ventilation.
- 150mm Duct Connection: Designed for compatibility with 150mm ventilation ducting.
- Mixed Flow Technology: Combines axial and centrifugal fan characteristics for efficient airflow through ducted systems.
- Two Selectable Speeds: Choose between two operating speeds during installation.
- Low-Speed Performance: Delivers airflow of 405m³/h.
- High-Speed Performance: Delivers airflow of 520m³/h.
- Inline Installation: Suitable for installation within loft spaces and appropriate ceiling voids.
- Integrated Mounting Cradle: Simplifies installation, inspection and maintenance.
- Accessible Terminal Box: Allows convenient electrical connections.
- Maintenance-Free Motor: Lubricated-for-life motor designed for dependable operation.
- Thermal Protection: Built-in thermal cut-out helps protect against overheating.
- IPX4 Splash Resistance: Suitable for appropriate moisture-prone environments.
- Versatile Applications: Ideal for bathrooms, utility rooms and other domestic ducted ventilation systems.
- Building Regulations Compliance: Designed to support Part F ventilation requirements when correctly specified and installed.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Model: XIMX150
- Product Code: XIMX150
- Manufacturer Reference: 93083AW
- Product Type: Inline Mixed Flow Extractor Fan
- Fan Type: Mixed Flow
- Installation Type: Inline Duct Installation
- Application: Domestic and Light Commercial Ventilation
- Duct Diameter: 150mm
- Spigot Diameter: 146mm
- Number of Speeds: 2
- Airflow (Low Speed): 405m³/h
- Airflow (High Speed): 520m³/h
- Airflow (Low Speed): 113 Litres per Second
- Airflow (High Speed): 144 Litres per Second
- Power Consumption: 30W / 60W
- Motor Type: AC
- Noise Level (Low Speed): 33dB(A) at 3 Metres
- Noise Level (High Speed): 44dB(A) at 3 Metres
- IP Rating: IPX4
- Timer Function: No
- Thermal Overload Protection: Yes
- Mounting Cradle: Included
- Electrical Terminal Box: Integrated
- Diameter: 250mm
- Length: 295mm
- Weight: Approximately 3.19kg
- Manufacturer Guarantee: 2 Years, Subject to Terms
What's in the Box?
- Xpelair XIMX150 Inline Mixed Flow Duct Fan
- Integrated Mounting Cradle
- Installation Documentation
