Description

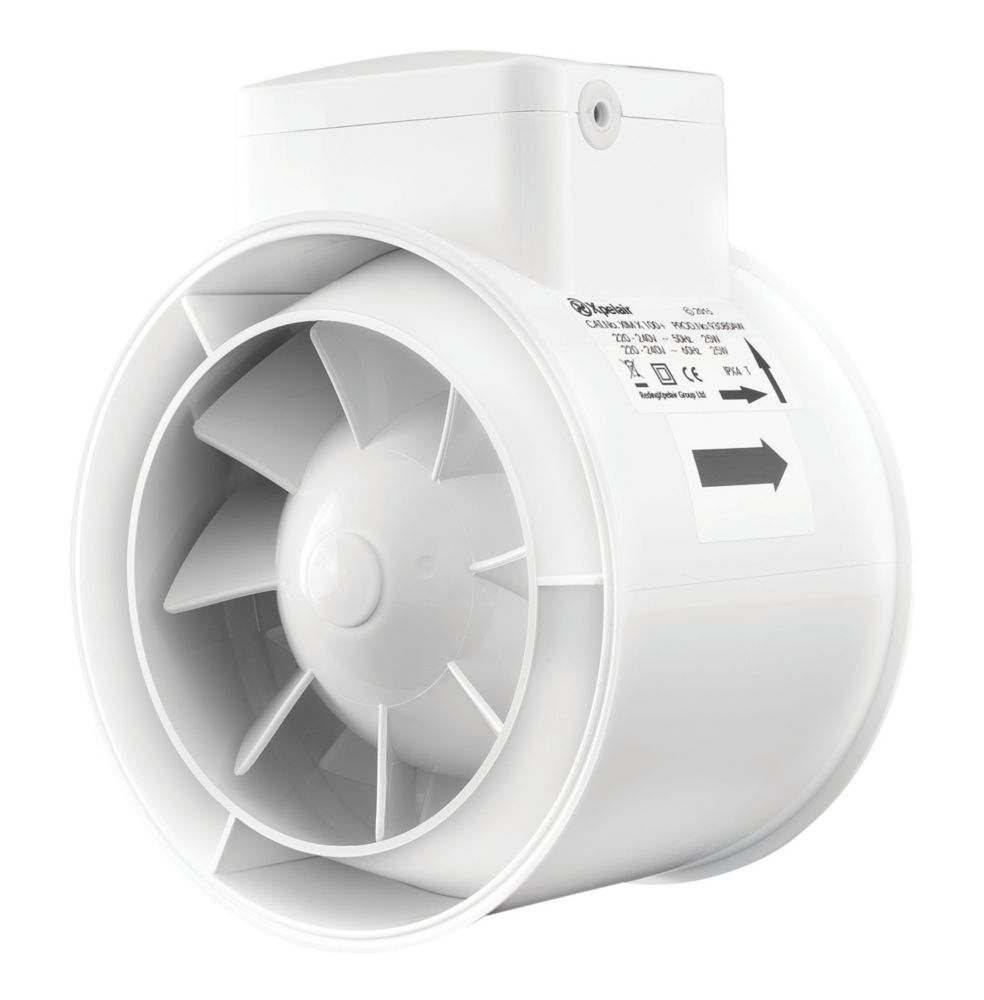

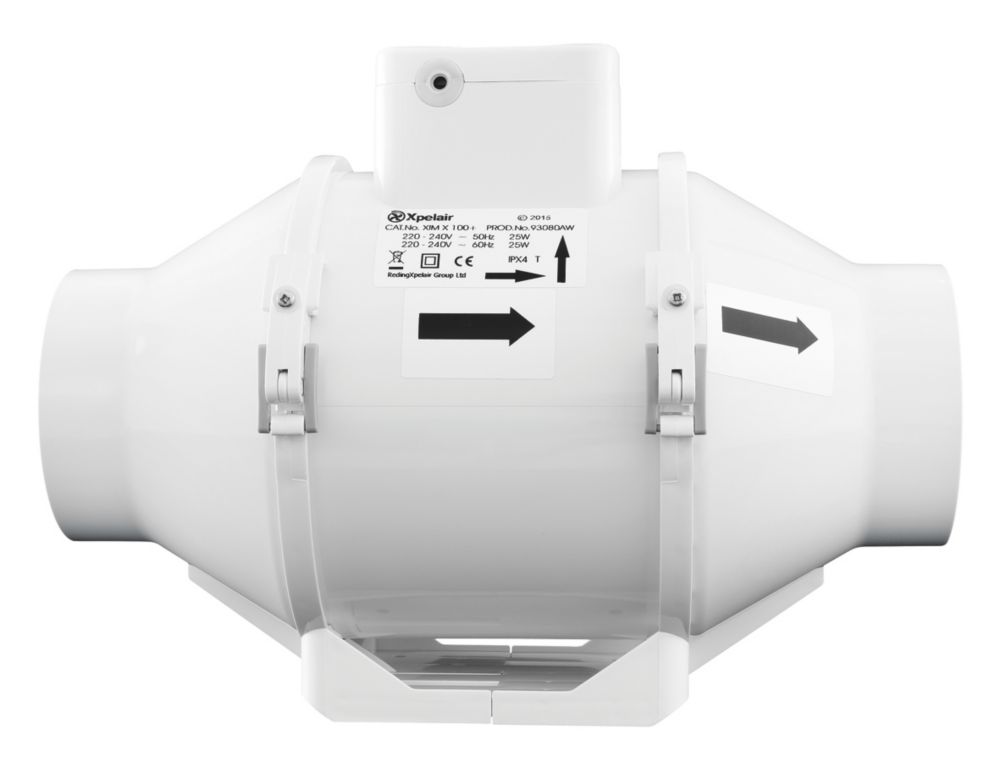

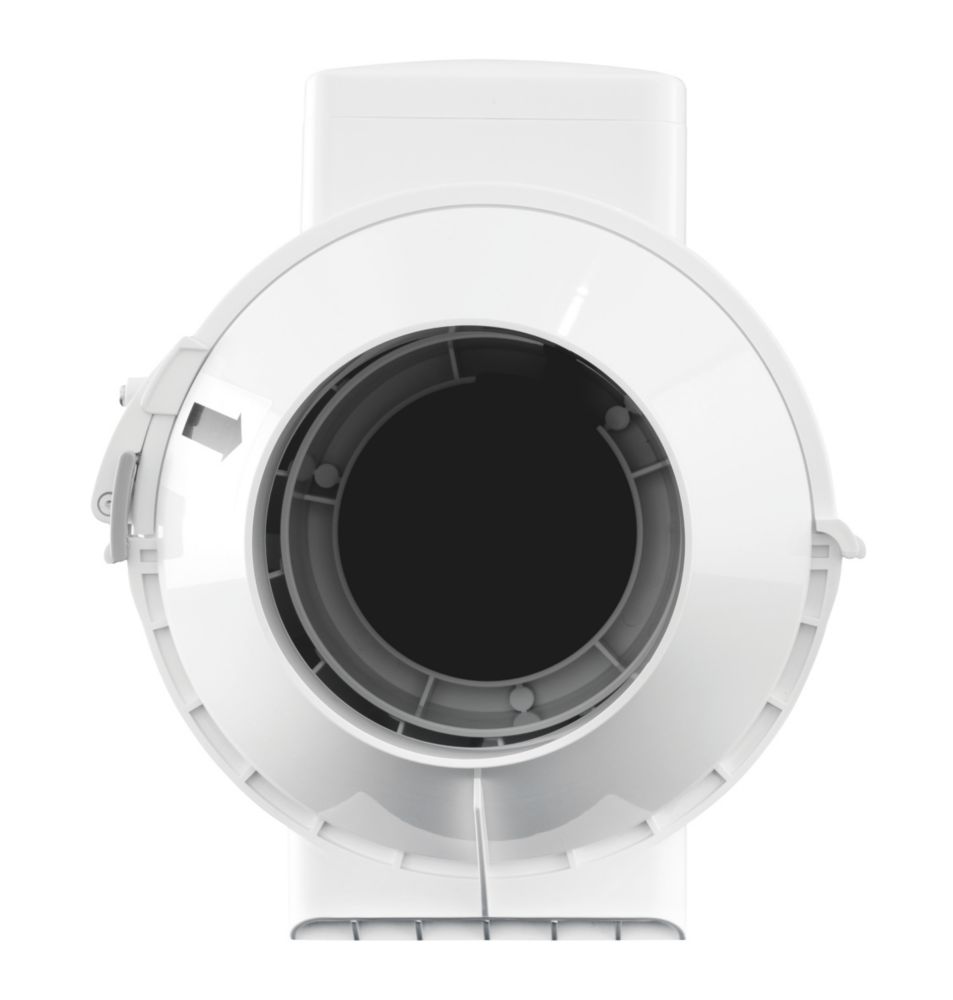

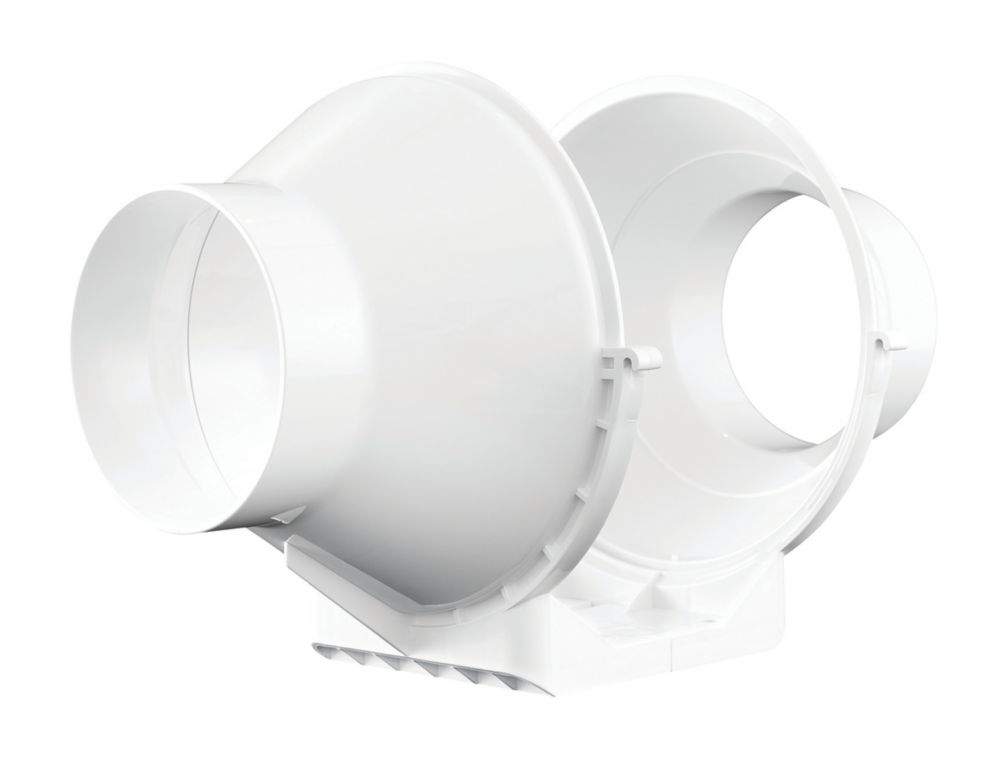

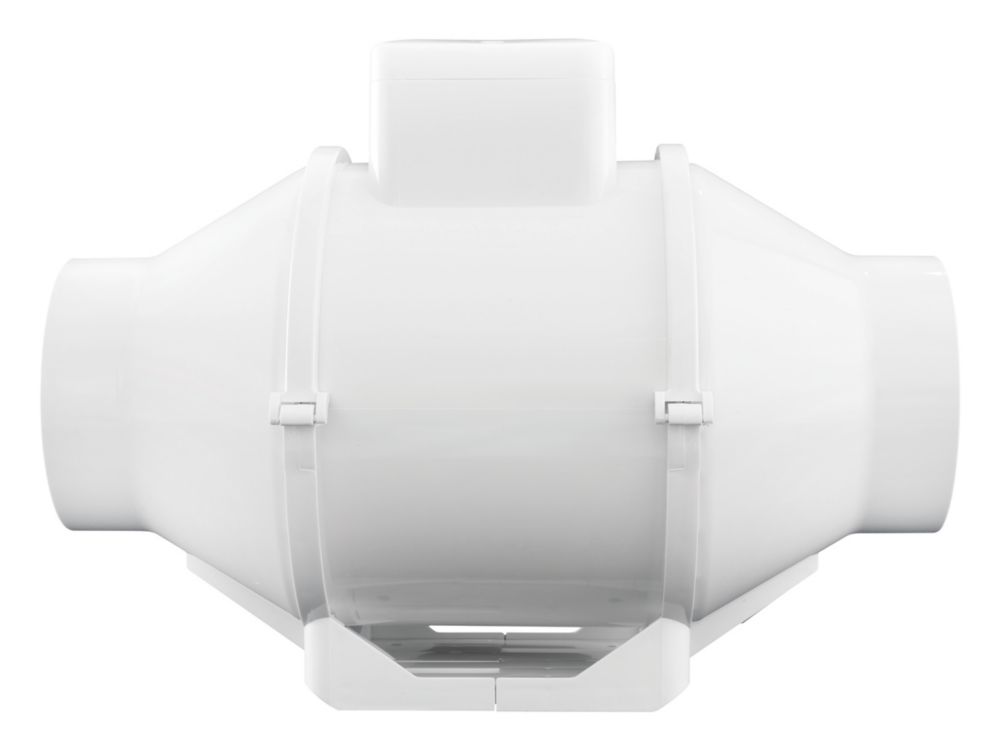

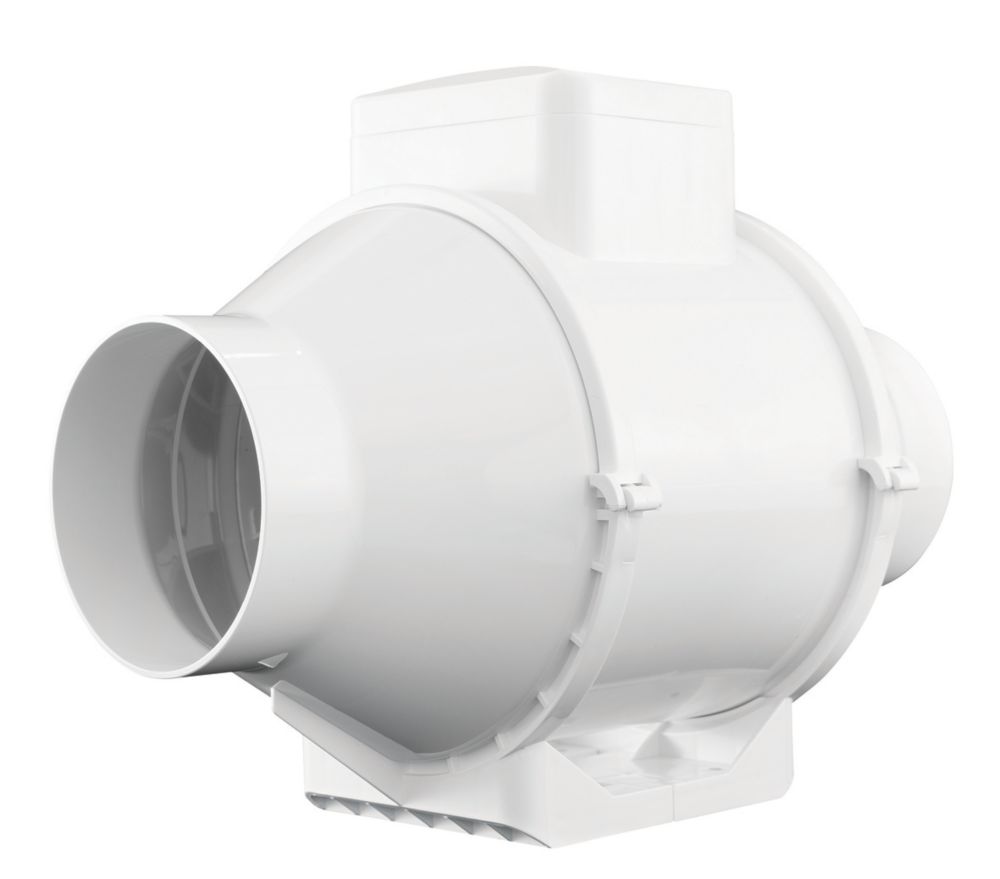

Improve ventilation throughout your home with the Xpelair XIMX100T+ Inline Mixed Flow Duct Fan. Designed to deliver powerful extraction with exceptionally quiet operation, this high-performance 100mm (4-inch) extractor fan is ideal for bathrooms, shower rooms, en-suites and other domestic spaces requiring effective ventilation.
Combining advanced mixed flow technology with an adjustable overrun timer, the XIMX100T+ helps remove excess moisture, condensation, stale air and unwanted odours, creating a fresher and more comfortable indoor environment.
Powerful Two-Speed Extraction
The Xpelair XIMX100T+ features a powerful two-speed motor, providing extraction rates of 180m³/h and 245m³/h. This enhanced airflow performance makes it particularly suitable for ducted ventilation installations where efficient air movement is essential.
The selectable speed settings allow installers to choose the most appropriate extraction rate for the room and ventilation requirements.
Exceptionally Quiet Operation
Designed for comfortable everyday use, the XIMX100T+ operates at noise levels of just 27dB(A) on its lower setting and 32dB(A) on high speed, measured at 3 metres.
This quiet performance makes it an excellent choice for bathrooms and en-suites where excessive extractor fan noise can be disruptive.
Adjustable Overrun Timer
The integrated adjustable overrun timer allows the fan to continue operating for between 2 and 30 minutes after switching off.
This useful feature helps remove lingering steam and moisture after showering, reducing condensation and helping maintain a healthier bathroom environment.
Flexible and Convenient Installation
Designed for installation within 100mm ducting systems, the Xpelair XIMX100T+ can be discreetly positioned in loft spaces and ceiling voids.
The supplied mounting cradle makes installation and subsequent inspection straightforward, while the easily accessible terminal box simplifies electrical connections.
Durable and Energy-Efficient Design
Featuring a robust AC motor and durable plastic construction, the XIMX100T+ is designed for reliable long-term performance.
With an IPX4 splash-resistant rating, low power consumption and a two-year manufacturer guarantee, this Xpelair inline extractor fan provides an excellent combination of efficiency, performance and convenience.
Key Features
- 100mm (4 Inch) Inline Extractor Fan: Ideal for bathrooms, shower rooms and domestic ducted ventilation systems.
- High-Performance Mixed Flow Technology: Provides powerful extraction while maintaining low operating noise.
- Two Selectable Speeds: Extraction rates of 180m³/h and 245m³/h.
- Quiet Operation: Noise levels of just 27dB(A) and 32dB(A) at 3 metres.
- Adjustable Overrun Timer: Continues operating for 2 to 30 minutes after switching off.
- Enhanced Extraction Performance: Plus model delivers greater airflow than the standard XIMX100T.
- IPX4 Splash Resistance: Suitable for appropriately designed bathroom ventilation installations.
- Energy-Efficient Motor: Power consumption of 23W or 25W depending on the selected speed.
- Flexible Installation: Suitable for installation in loft spaces and ceiling voids.
- Convenient Mounting Cradle: Supplied for straightforward installation and maintenance access.
- Accessible Terminal Box: Simplifies electrical installation.
- Two-Year Manufacturer Guarantee: Provides additional peace of mind.
Technical Specifications
- Brand: Xpelair
- Model: XIMX100T+
- Manufacturer Reference: 93081AW
- Product Type: Inline Mixed Flow Extractor Fan
- Colour: White
- Duct Diameter: 100mm (4 Inches)
- Number of Speeds: 2
- Extraction Rate: 180/245m³/h
- Airflow Rate: 50/68 Litres per Second
- Noise Level: 27/32dB(A) at 3m
- Power Consumption: 23/25W
- Voltage: 220–240V
- Timer: Adjustable 2–30 Minutes
- IP Rating: IPX4
- Motor Type: AC
- Installation: Inline Duct / Loft / Ceiling Void
- Dimensions: 302.5 × 226mm (Length × Height)
- Weight: 2.15kg
- Manufacturer Guarantee: 2 Years
What's in the Box?
- Xpelair XIMX100T+ Inline Mixed Flow Duct Fan
- Installation Mounting Cradle
- Installation Instructions
