Description
Improve ventilation throughout your home with the Xpelair XIMX100+ Inline Mixed Flow Duct Fan. Designed to deliver powerful extraction with quiet operation, this high-performance 100mm (4-inch) extractor fan is ideal for bathrooms, shower rooms, en-suites, utility rooms and other domestic spaces requiring effective ventilation.
Combining efficient mixed flow technology with a compact and practical design, the XIMX100+ helps remove excess moisture, condensation, stale air and unwanted odours, creating a fresher and more comfortable indoor environment.
Powerful Two-Speed Extraction
The Xpelair XIMX100+ features a two-speed motor, providing extraction rates of 180m³/h and 245m³/h. This powerful airflow performance makes it particularly suitable for ducted ventilation installations where efficient air movement is essential.
The selectable speed settings allow installers to choose the most appropriate extraction rate for the room and ventilation requirements.
Quiet and Efficient Operation
Designed for comfortable everyday use, the XIMX100+ operates at noise levels of approximately 27dB(A) on its lower setting and 32dB(A) on high speed, measured at 3 metres.
This quiet performance makes it an excellent choice for bathrooms and en-suites where excessive extractor fan noise can be disruptive.
Flexible Inline Installation
Designed for installation within 100mm ducting systems, the Xpelair XIMX100+ can be discreetly positioned in loft spaces and ceiling voids.
The supplied mounting cradle allows for straightforward installation and convenient access for future inspection or maintenance. Its compact construction makes it suitable for installations where space is limited.
Durable and Reliable Performance
Featuring a robust AC motor and durable plastic construction, the XIMX100+ is designed for dependable long-term performance.
Its IPX4 splash-resistant rating provides additional protection in suitable ventilation installations, while its energy-efficient motor helps minimise electricity consumption.
With powerful extraction, quiet operation and flexible installation options, the Xpelair XIMX100+ is an excellent choice for improving ventilation in domestic bathrooms and other moisture-prone areas.
Key Features
- 100mm (4 Inch) Inline Extractor Fan: Ideal for bathrooms, shower rooms, en-suites and domestic ventilation systems.
- Powerful Mixed Flow Technology: Combines effective extraction with quiet operation.
- Two Selectable Speeds: Extraction rates of 180m³/h and 245m³/h.
- Quiet Operation: Noise levels of approximately 27dB(A) and 32dB(A) at 3 metres.
- Enhanced Extraction Performance: Plus model provides improved airflow compared with the standard XIMX100.
- IPX4 Splash Resistance: Suitable for appropriately designed bathroom ventilation installations.
- Energy-Efficient Motor: Power consumption of approximately 23W or 25W depending on the selected speed.
- Flexible Installation: Designed for installation in loft spaces and ceiling voids.
- Convenient Mounting Cradle: Allows for straightforward installation and maintenance access.
- Compact Construction: Suitable for discreet installation within ducted ventilation systems.
- Durable AC Motor: Designed for reliable everyday operation.
- Two-Year Manufacturer Guarantee: Provides additional peace of mind.
Technical Specifications
- Brand: Xpelair
- Model: XIMX100+
- Product Type: Inline Mixed Flow Extractor Fan
- Colour: White
- Duct Diameter: 100mm (4 Inches)
- Number of Speeds: 2
- Extraction Rate: 180/245m³/h
- Airflow Rate: 50/68 Litres per Second
- Noise Level: 27/32dB(A) at 3m
- Power Consumption: 23/25W
- Voltage: 220–240V
- IP Rating: IPX4
- Motor Type: AC
- Installation: Inline Duct / Loft / Ceiling Void
- Timer: No

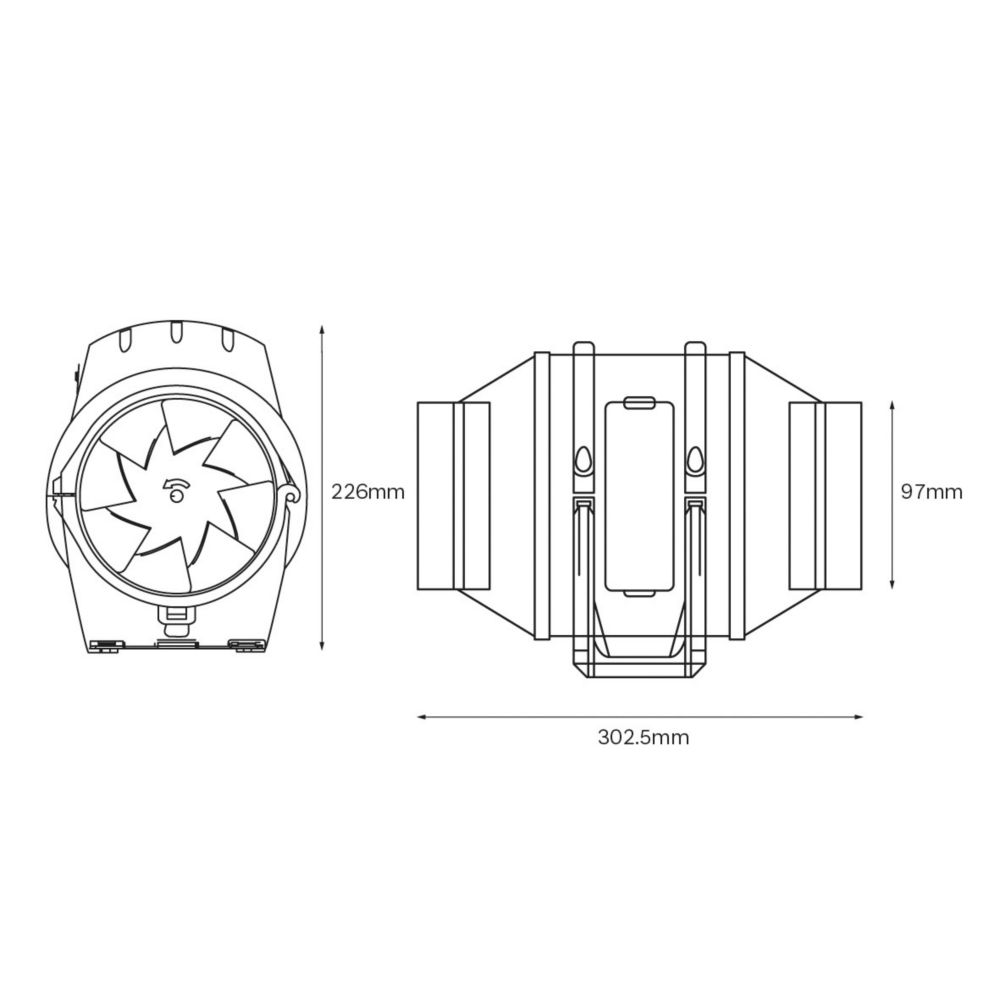

- Dimensions: Approximately 302.5 × 226mm
- Weight: Approximately 2.15kg
- Manufacturer Guarantee: 2 Years
What's in the Box?
- Xpelair XIMX100+ Inline Mixed Flow Duct Fan
- Installation Mounting Cradle
- Installation Instructions
