Description

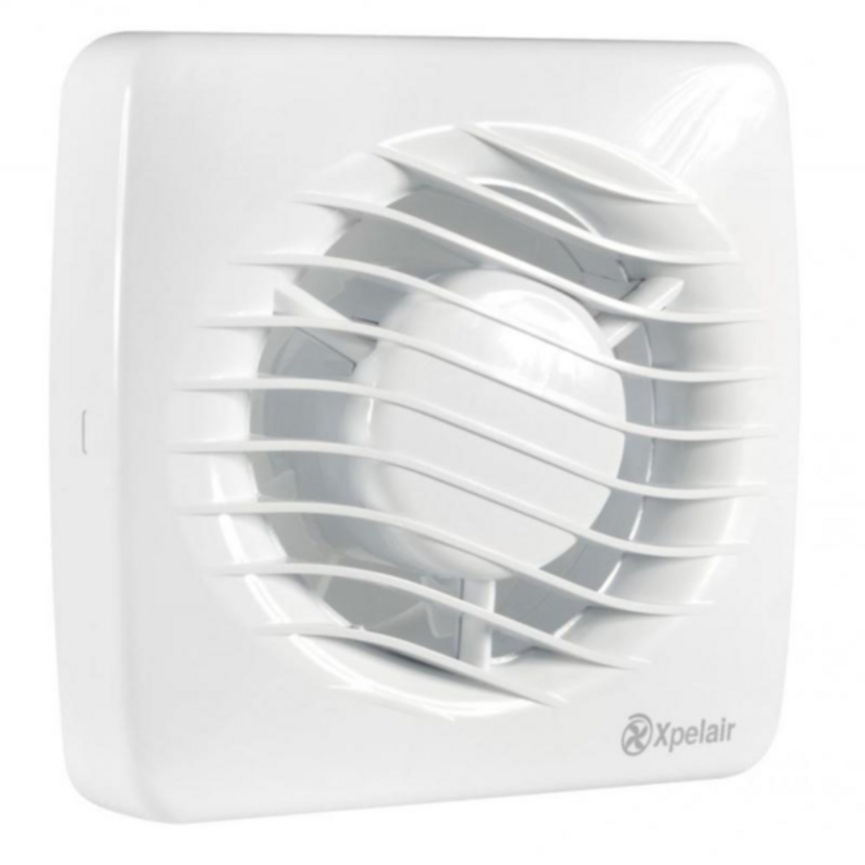

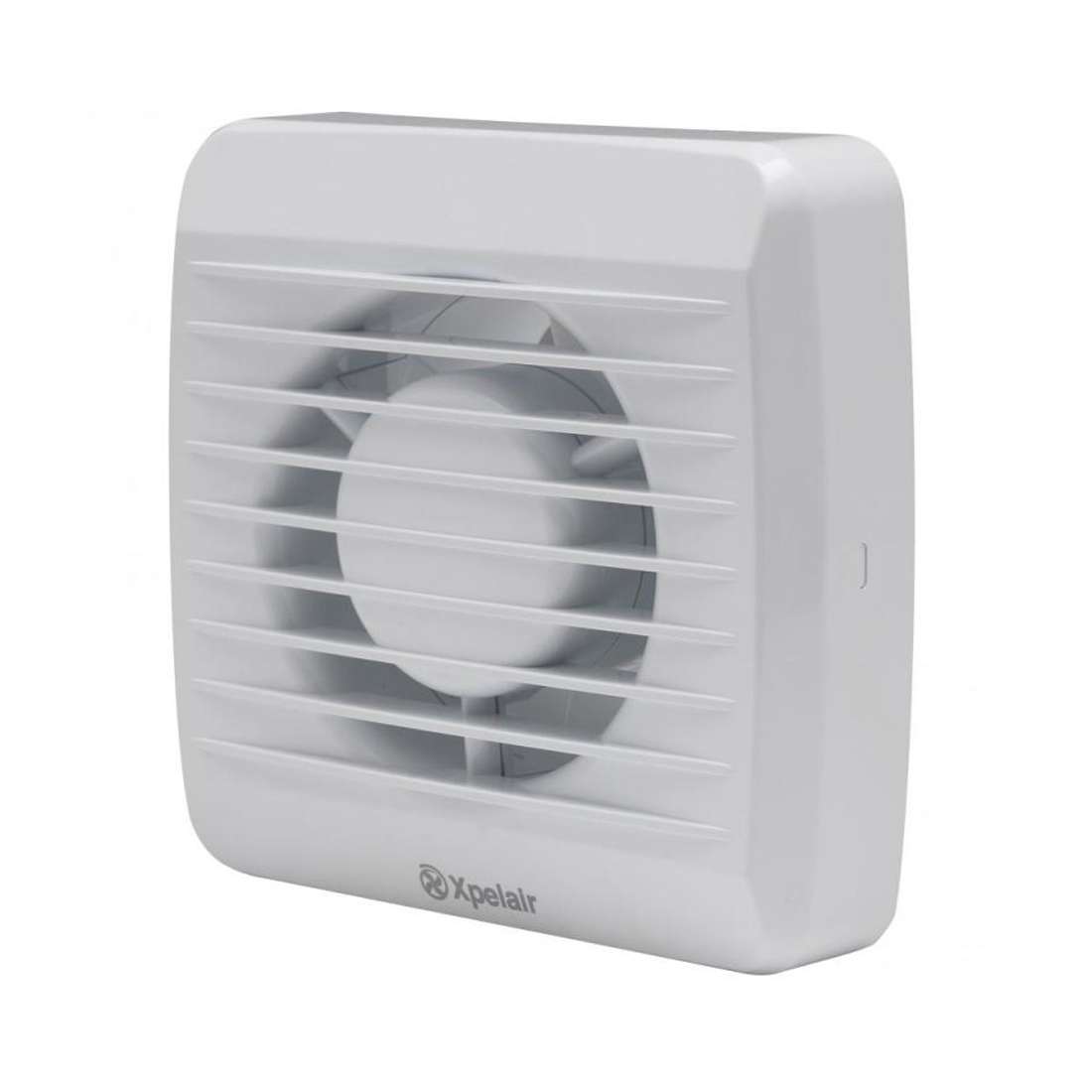

Improve bathroom ventilation with the Xpelair VX100-SP Extractor Fan, a compact and reliable 100mm axial fan designed specifically for shallow wall and ceiling installations. Ideal for bathrooms, shower rooms, en-suites and toilets, this practical ventilation solution helps remove excess moisture, condensation and unwanted odours.
Featuring a short spigot design, the VX100-SP is particularly suitable for installations where space behind the wall or ceiling is limited. Its compact construction makes it an excellent choice for replacing existing extractor fans or installing ventilation in areas where conventional fans may be too deep.
With an extraction rate of 76m³/h (21 litres per second), the Xpelair VX100-SP delivers effective single-speed ventilation to help maintain a fresh and comfortable indoor environment.
The fan features a durable AC motor with lubricated-for-life bearings and integrated thermal cut-out protection, providing dependable performance with minimal maintenance.
Designed for straightforward wall or ceiling installation, the VX100-SP features a classic white grille that blends discreetly with bathroom interiors.
With IPX4 splash resistance, low 12W power consumption and a two-year manufacturer's guarantee, the Xpelair VX100-SP provides a practical solution for everyday bathroom ventilation.
Key Features
- Short Spigot Design: Ideal for shallow wall cavities and ceiling voids where installation space is limited.
- 100mm Axial Extractor Fan: Suitable for bathrooms, shower rooms, en-suites and toilets.
- Effective Air Extraction: Delivers 76m³/h (21 litres per second) to help remove moisture and stale air.
- Single-Speed Operation: Provides consistent ventilation through a suitable external switch.
- Compact Construction: Designed for straightforward installation in restricted spaces.
- Wall or Ceiling Installation: Flexible mounting options for different bathroom layouts.
- Energy-Efficient Performance: Low electrical power consumption of 12W.
- Durable AC Motor: Lubricated-for-life motor designed for reliable operation.
- Thermal Cut-Out Protection: Integrated protection helps prevent motor overheating.
- IPX4 Splash Resistance: Suitable for appropriate moisture-prone environments.
- Classic White Finish: Simple grille design complements a wide range of bathroom interiors.
- External Switch Operation: Can be connected to a suitable bathroom lighting circuit or separate switch.
- Low-Maintenance Design: Engineered for dependable everyday operation.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Model: VX100-SP
- Product Code: VX100-SP
- Manufacturer Reference: 92935AW
- Product Type: Bathroom Extractor Fan with Short Spigot
- Fan Type: Axial
- Colour: White
- Application: Bathrooms, Shower Rooms, En-Suites and Toilets
- Installation Type: Wall or Ceiling Mounted
- Fan Diameter: 100mm (4 Inches)
- Spigot Type: Short Spigot
- Spigot Depth: Approximately 32mm
- Number of Speeds: 1
- Extraction Rate: 76m³/h
- Airflow: 21 Litres per Second
- Power Consumption: 12W
- Specific Fan Power: 0.57W/l/s
- Motor Type: AC
- Motor Bearings: Lubricated for Life
- Thermal Overload Protection: Yes
- Noise Level: 41dB(A) at 3 Metres
- Timer Function: No
- Humidistat: No
- PIR Motion Sensor: No
- Pullcord: No
- Switching: External Switch
- IP Rating: IPX4
- Front Grille Width: 165mm
- Front Grille Height: 155mm
- Manufacturer Guarantee: 2 Years, Subject to Terms
What's in the Box?
- Xpelair VX100-SP 100mm Extractor Fan White
