Description

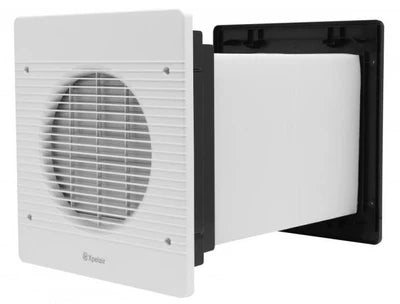

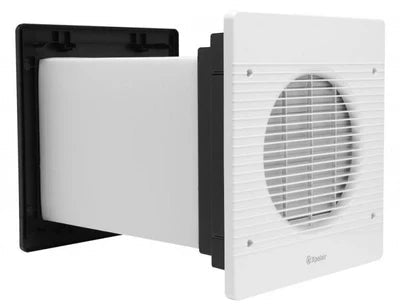

The Xpelair WX12 Commercial Wall Extractor Fan is a powerful 12-inch (300mm) axial ventilation fan designed for demanding commercial and industrial environments. Ideal for restaurants, pubs, commercial kitchens, offices, factories, schools and shops, this high-performance fan provides effective ventilation to help remove stale air, excess heat, moisture and unwanted odours.
Delivering an impressive extraction rate of up to 1,715m³/h (476 litres per second), the WX12 is suitable for larger spaces requiring substantial airflow. Its reversible operation allows the fan to be used for both air extraction and intake ventilation, providing flexibility for different ventilation requirements.
The fan features a silent electro-thermal shutter that automatically closes when the fan is switched off, helping prevent unwanted backdraughts. An integrated trickle ventilation facility also allows background airflow when the fan is not operating.
Designed for installation in external walls, the Xpelair WX12 is suitable for single brick, cavity brick and timber-frame construction. It comes complete with a wall-mounting kit and a corrugated plastic wall liner that can be cut to suit the installation.
The slimline white fascia provides a neat, professional finish, while integrated finger guards offer additional safety. The fan also features a positive plug-and-socket connection for convenient electrical isolation during maintenance.
For greater control, the WX12 can be used with a compatible optional controller to provide two-speed operation and reversible airflow.
With an IPX4 splash-resistant rating, robust commercial construction and a two-year manufacturer's guarantee, the Xpelair WX12 is a dependable ventilation solution for busy commercial premises.
Key Features
- Powerful Commercial Ventilation: Designed for restaurants, pubs, commercial kitchens, offices, factories, schools and shops.
- 12-Inch Axial Fan: Large 300mm impeller delivers high-volume airflow.
- High Extraction Capacity: Extracts up to 1,715m³/h (476 litres per second).
- Reversible Airflow: Supports both extraction and intake ventilation.
- Two-Speed Capability: High and low speeds available when used with a compatible optional controller.
- Silent Electro-Thermal Shutter: Automatically closes when the fan is switched off to reduce backdraughts.
- Trickle Ventilation Facility: Allows background ventilation when the fan is not running.
- Wall-Mounted Design: Suitable for single brick, cavity brick and timber-frame walls.
- Wall Liner Included: Supplied with a corrugated plastic wall liner for installation.

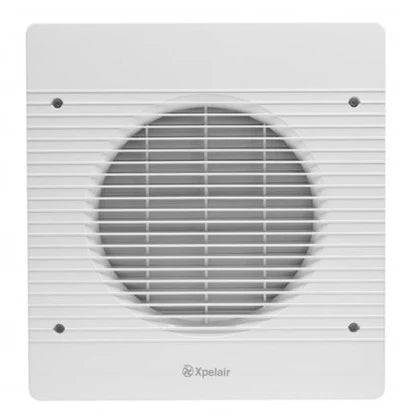

- Slimline White Fascia: Low-profile design provides a clean, professional appearance.
- Integrated Safety Finger Guards: Designed to help prevent accidental contact with moving components.
- Positive Plug-and-Socket Connection: Allows electrical isolation for maintenance.
- IPX4 Splash Resistance: Suitable for appropriate commercial ventilation environments.
- 85W Power Rating: Designed to deliver powerful airflow with controlled energy consumption.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Model: WX12
- Product Code: WX12
- Manufacturer Reference: 90011AW
- Product Type: Commercial Wall Extractor Fan
- Fan Type: Axial
- Colour: White
- Application: Commercial Kitchens, Restaurants, Pubs, Offices, Factories, Schools and Shops
- Installation Type: Wall Mounted
- Fan Diameter: 300mm (12 Inches)
- Airflow Direction: Reversible Intake and Extract
- Maximum Extraction Rate: 1,715m³/h
- Maximum Extraction Airflow: 476 Litres per Second
- Low-Speed Extraction Rate: 1,162m³/h
- Low-Speed Extraction Airflow: 322 Litres per Second
- Maximum Intake Rate: 969m³/h
- Low-Speed Intake Rate: 815m³/h
- Number of Speeds: 2 with Compatible Optional Controller
- Standard Operation: High Speed
- Power Consumption: 85W
- Electrical Supply: 220–240V AC
- Noise Level: 48–54dB(A) at 3 Metres
- Shutter Type: Automatic Electro-Thermal Shutter
- Trickle Ventilation: Yes
- Safety Finger Guard: Yes
- IP Rating: IPX4
- Timer Function: No
- Humidistat: No
- Pullcord: No
- Control Type: External Switch or Compatible Optional Controller
- Compatible Controller: Xpelair FR22/30
- Wall Opening Required: 434 × 434mm
- Compatible Wall Thickness: 275–375mm

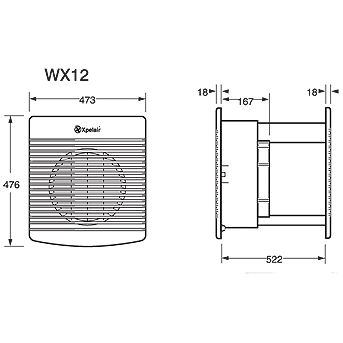

- Front Fascia Width: 473mm
- Front Fascia Height: 476mm
- Front Projection: 18mm
- Weight: 8.3kg
- Manufacturer Guarantee: 2 Years, Subject to Terms
What's in the Box?
- Xpelair WX12 12 Inch Commercial Wall Extractor Fan White
- Wall-Mounting Kit
- Corrugated Plastic Wall Liner
