Description

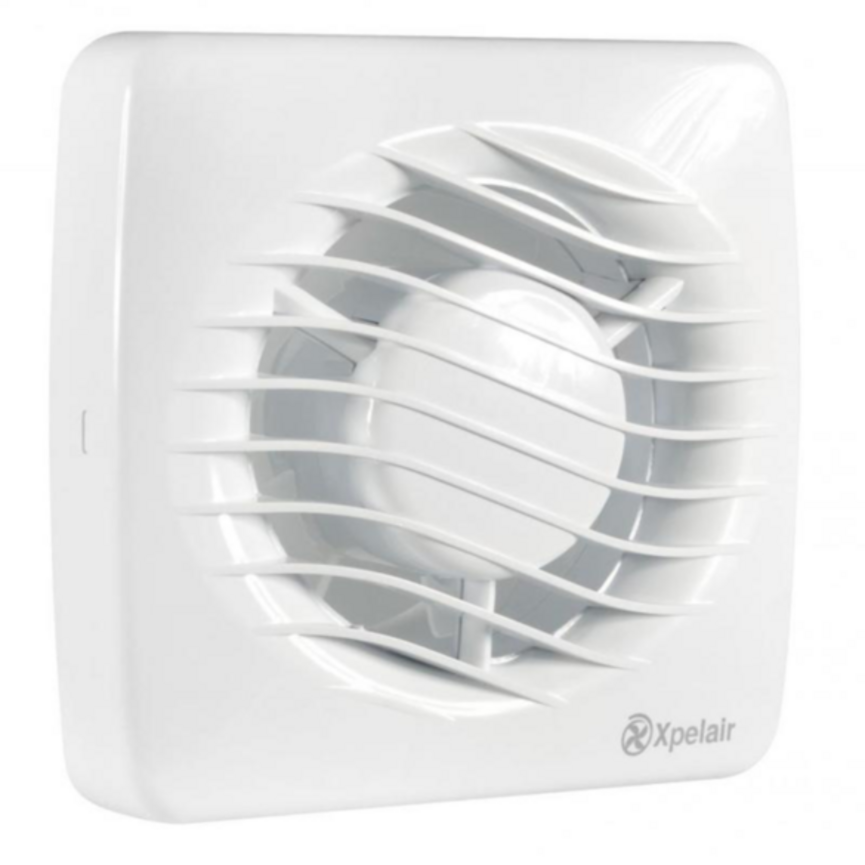

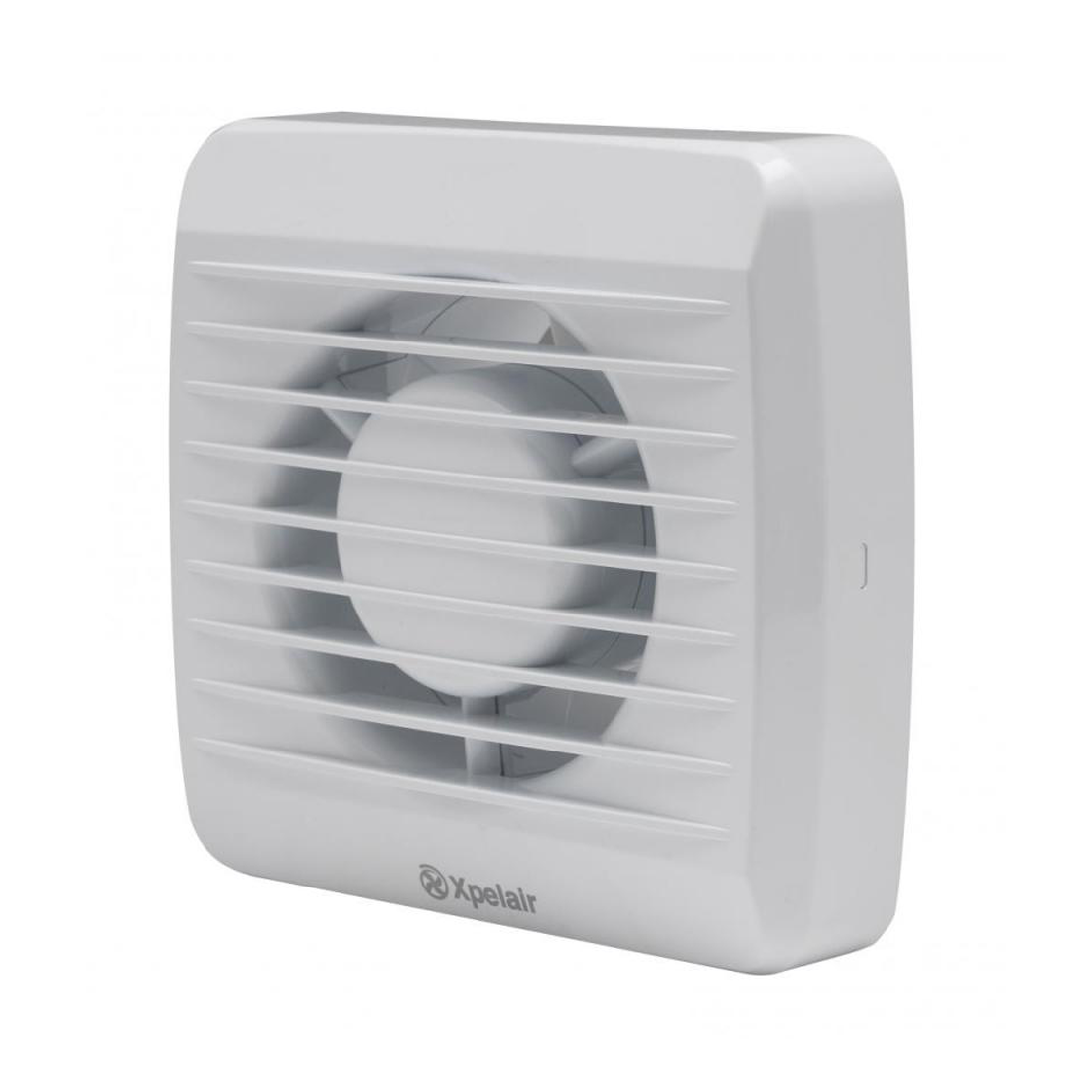

Improve bathroom ventilation with the Xpelair VX100T-SP Extractor Fan, a compact and reliable 100mm axial fan designed for shallow wall and ceiling installations. Ideal for bathrooms, shower rooms, en-suites and toilets, this practical ventilation solution helps remove excess moisture, condensation and unwanted odours.
Featuring a short spigot design, the VX100T-SP is particularly suitable for installations where space behind the wall or ceiling is limited. Its compact construction makes it an excellent choice for replacing existing extractor fans or installing ventilation in areas where conventional fans may be too deep.
The integrated adjustable overrun timer allows the fan to continue operating for between 90 seconds and 30 minutes after being switched off. This helps remove lingering steam and moisture following showers or baths, reducing the risk of condensation and mould growth.
With an extraction rate of 76m³/h (21 litres per second), the Xpelair VX100T-SP delivers effective single-speed ventilation to help maintain a fresh and comfortable indoor environment.
The fan features a durable AC motor with lubricated-for-life bearings and integrated thermal cut-out protection, providing dependable performance with minimal maintenance.
Designed for straightforward wall or ceiling installation, the VX100T-SP features a classic white grille that blends discreetly with bathroom interiors.
With IPX4 splash resistance, low 12W power consumption and a two-year manufacturer's guarantee, the Xpelair VX100T-SP provides a practical solution for everyday bathroom ventilation.
Key Features
- Short Spigot Design: Ideal for shallow wall cavities and ceiling voids where installation space is limited.
- 100mm Axial Extractor Fan: Suitable for bathrooms, shower rooms, en-suites and toilets.
- Adjustable Overrun Timer: Continues extraction for between 90 seconds and 30 minutes after switching off.
- Effective Air Extraction: Delivers 76m³/h (21 litres per second) to help remove moisture and stale air.
- Single-Speed Operation: Provides consistent ventilation through a suitable external switch.
- Compact Construction: Designed for straightforward installation in restricted spaces.
- Wall or Ceiling Installation: Flexible mounting options for different bathroom layouts.
- Energy-Efficient Performance: Electrical power consumption of just 12W.
- Durable AC Motor: Lubricated-for-life motor designed for reliable operation.
- Thermal Cut-Out Protection: Integrated protection helps prevent motor overheating.
- IPX4 Splash Resistance: Suitable for appropriate moisture-prone environments.
- Classic White Finish: Simple grille design complements a wide range of bathroom interiors.
- External Switch Operation: Can be connected to a suitable bathroom lighting circuit or separate switch.
- Low-Maintenance Design: Engineered for dependable everyday operation.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Xpelair
- Model: VX100T-SP
- Product Code: 92931AW
- Product Type: Bathroom Extractor Fan with Timer and Short Spigot
- Fan Type: Axial
- Colour: White
- Application: Bathrooms, Shower Rooms, En-Suites and Toilets
- Installation Type: Wall or Ceiling Mounted
- Fan Diameter: 100mm (4 Inches)
- Spigot Type: Short Spigot
- Spigot Depth: Approximately 32mm
- Number of Speeds: 1
- Extraction Rate: 76m³/h
- Airflow: 21 Litres per Second
- Power Consumption: 12W
- Specific Fan Power: 0.57W/l/s
- Motor Type: AC
- Motor Bearings: Lubricated for Life
- Thermal Overload Protection: Yes
- Noise Level: 41dB(A) at 3 Metres
- Timer Function: Yes
- Timer Type: Adjustable Overrun
- Timer Range: 90 Seconds to 30 Minutes
- Humidistat: No
- PIR Motion Sensor: No
- Pullcord: No
- Switching: External Switch
- IP Rating: IPX4
- Front Grille Width: 165mm
- Front Grille Height: 155mm
- Overall Depth: 75mm
- Packed Weight: 0.8kg
- Packed Dimensions: 180 × 180 × 90mm
- Manufacturer Guarantee: 2 Years, Subject to Terms
What's in the Box?
- Xpelair VX100T-SP 100mm Timer Extractor Fan White
