Description

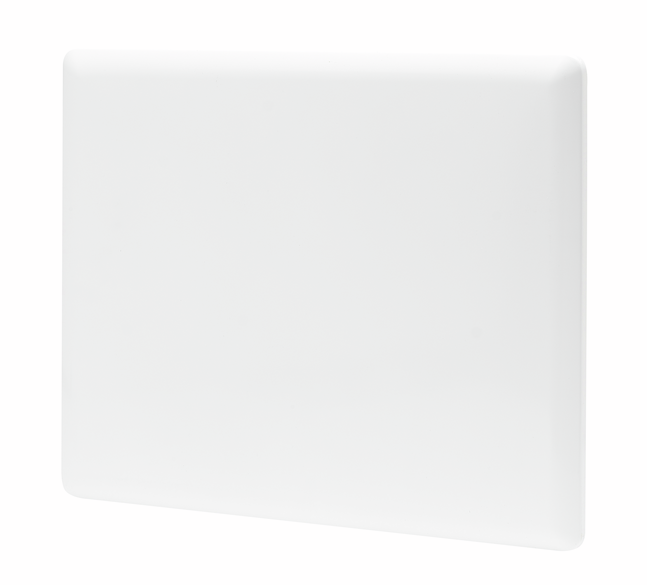

The Dimplex Alta 500W WiFi Panel Heater combines a slim Scandinavian-inspired design with intelligent heating controls and built-in WiFi connectivity. Designed for permanent wall-mounted installation, this compact 500W model is particularly well suited to smaller rooms and spaces where a lower heat output is appropriate.
Built-in WiFi allows the Alta to connect directly to your home network without requiring a separate hub or additional control module. Once connected to the Dimplex Capa Connect app, heating can be managed remotely from a compatible smartphone or tablet.
The app provides convenient control over temperature and heating schedules and makes it possible to manage multiple compatible heaters from one place. This is particularly useful when Alta heaters are installed across several rooms.
For precise everyday temperature management, the Alta uses a digitally controlled electronic thermostat accurate to within ±0.2°C. The desired temperature can be set between 7°C and 30°C, helping maintain consistent room comfort while avoiding unnecessary heating.
A seven-day programmable timer provides extensive scheduling flexibility, with up to seven heating periods available per day. This allows heating to be tailored closely around normal routines rather than leaving the heater running when the room isn't being used.
Several operating modes are provided, including Normal Timer, Comfort, Eco, Away and Off. These make it easy to adapt the heater for everyday comfort, reduced-energy periods or longer absences.
Controls can also be accessed directly from the heater through its digital display and capacitive buttons, so everyday operation doesn't depend entirely on a smartphone. Child Lock and Heater Lock functions help prevent unwanted changes to settings.
The Alta uses a convective aluminium heating element with an upward-facing outlet grille to encourage effective circulation of warm air into the room. With no fan required for normal operation, it provides quiet electric heating suitable for bedrooms, home offices and other living areas.
Its slim white powder-coated steel casing projects just 90mm from the wall when installed with its mounting bracket. The included H-frame bracket simplifies wall installation and gives the finished heater a neat, contemporary appearance.
IP24 splash-water protection also provides greater flexibility when selecting an appropriate installation location, subject to electrical installation regulations.
Compact, connected and highly programmable, the 500W Dimplex Alta is an excellent choice where smart heating control and a relatively low heat output are required without sacrificing precise temperature management.
Key Features
- Dimplex Alta WiFi Panel Heater
- 500W / 0.5kW heat output
- Compact 40cm-high profile
- Built-in WiFi connectivity
- Connects directly to your WiFi network
- No separate smart hub required
- Compatible with the Dimplex Capa Connect app
- Smartphone and tablet control
- Remote temperature adjustment
- Customisable heating schedules
- Manage multiple compatible heaters through the app
- 7-day programmable timer
- Up to 7 heating periods per day
- Digitally controlled electronic thermostat
- Thermostat accuracy of ±0.2°C
- Adjustable temperature range from 7°C to 30°C
- Normal Timer mode
- Comfort mode
- Eco mode
- Away mode
- Off mode
- Digital segmented display
- Capacitive control buttons
- Child Lock
- Heater Lock
- Short-term time memory
- Convective aluminium heating element
- Upward-facing heat outlet
- Quiet operation
- Wall-mounted installation
- H-frame wall bracket included
- Plastic tilt strap included
- Slim contemporary design
- Durable powder-coated steel casing
- Traffic White RAL 9016 finish
- IP24 rated
- Automatic-reset thermal safety cut-out
- Class II electrical appliance
- Lot 20 compliant
- CE, UKCA and BEAB approved
- 230–240V / 50Hz
- 1.3m power cable
- Cable exit at bottom right
- Dimensions: H 400 x W 525 x D 90mm
- Weight: 3.6kg
- 2-year manufacturer guarantee
- Additional 3-year guarantee available with registration
- Model: DTD4R 05
- Dimplex product number: 400001221
- EAN: 5011139085818
What's in the Box
- Dimplex Alta 500W WiFi Panel Heater
- H-frame wall-mounting bracket
- Plastic tilt strap
- 1.3m fitted power cable
- Installation and operating documentation
