Description

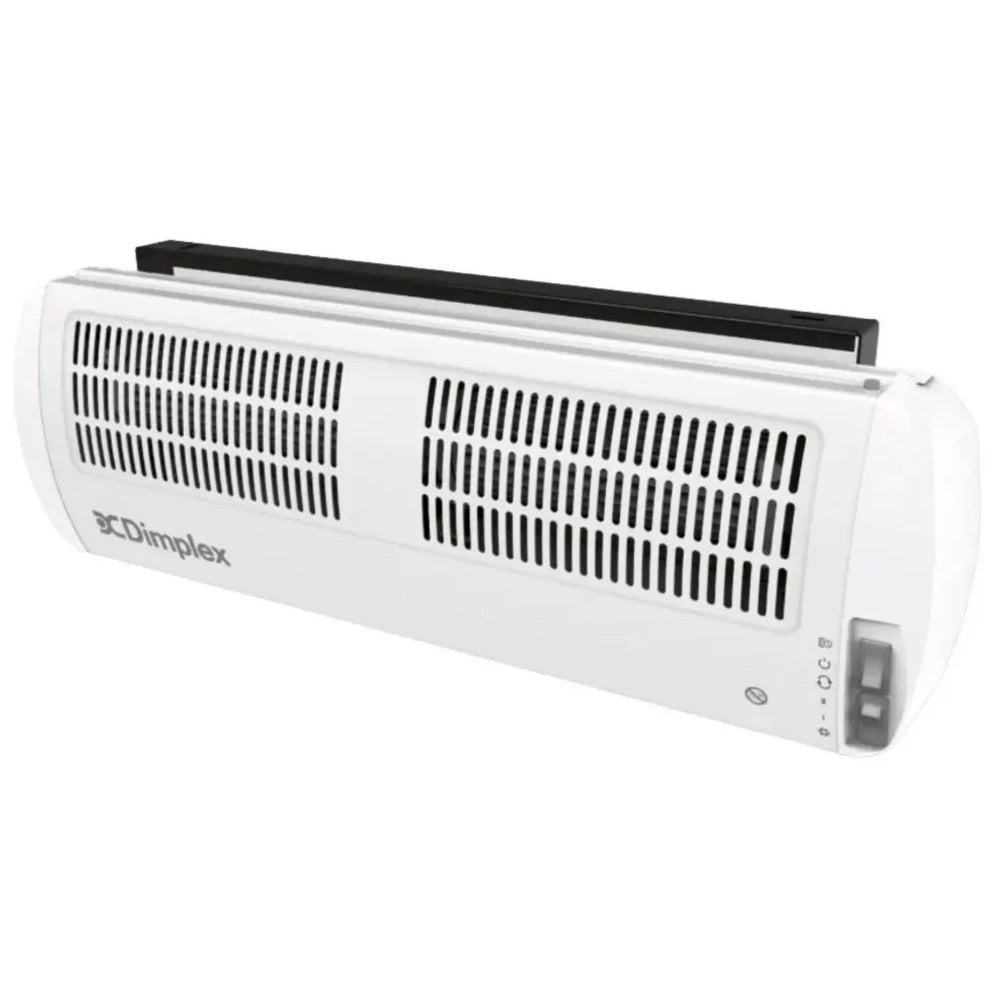

Create a warm and welcoming entrance with the Dimplex AC3W 3kW Over Door Air Curtain. Designed for commercial premises, this compact wall-mounted electric heater provides powerful, directional warmth above doorways, helping improve comfort for customers, staff and visitors during colder weather.
Featuring two heat settings, fan-only operation, electronic temperature control and smart configuration through the Dimplex ConfigR app, the AC3W combines practical commercial heating with convenient modern controls.
Powerful 3kW Heating for Commercial Entrances
The Dimplex AC3W delivers up to 3000W of heating power, making it an excellent choice for shops, offices, reception areas and other commercial environments.

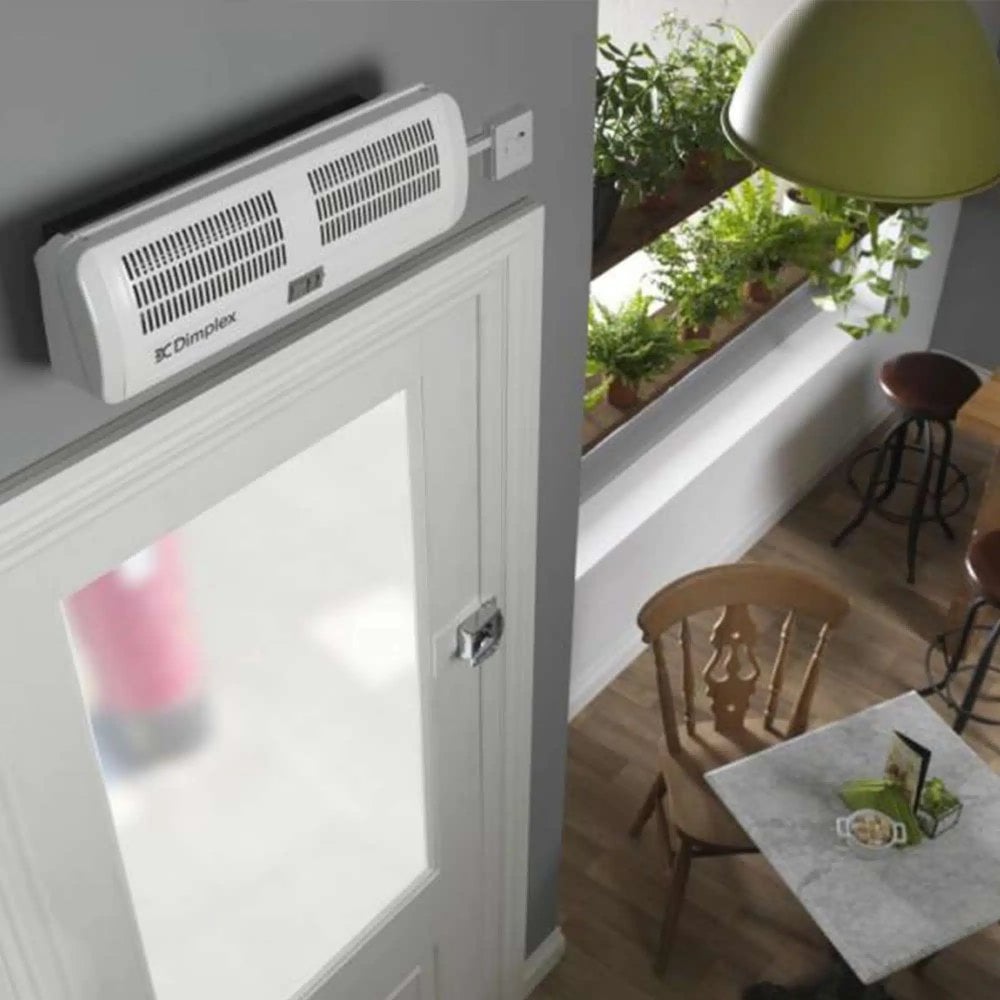

Installed above a doorway, the heater directs warm air downwards towards the entrance area, providing supplementary warmth where it is most needed.
Its compact design is particularly suited to single doorways, offering a practical heating solution without occupying valuable floor space.
Two Adjustable Heat Settings
Choose between two heating outputs to suit the temperature and comfort requirements of your premises.
- Half Heat: 1.3kW for moderate heating requirements.
- Full Heat: 3kW for maximum heating performance.
- Fan Only: Air circulation without activating the heating elements.
These flexible operating modes allow the AC3W to provide comfortable warmth during colder periods while offering fan-only operation when heating is unnecessary.
Advanced Dimplex ConfigR App Control
The AC3W supports the Dimplex ConfigR app, providing access to advanced heating configuration and programming.
Through the app, users can adjust the electronic thermostat, configure heating schedules and access additional functions such as boost operation.
The ConfigR app is required during initial commissioning, after which the heater can also be operated using its convenient onboard controls.
Seven-Day Programmable Heating
The integrated seven-day programmable timer allows you to tailor heating operation to your business's opening hours.
Set different heating periods throughout the week to help maintain comfortable entrance temperatures when staff and customers are present.
This provides a convenient way to manage heating operation without relying entirely on manual switching.
Accurate Electronic Thermostat
The AC3W incorporates an electronic thermostat for improved temperature management.
Using the ConfigR app, the desired temperature can be adjusted between 7°C and 32°C.
The heater automatically regulates its operation to help maintain the selected temperature, providing greater flexibility than traditional manually controlled over-door heaters.
Durable EnduroTech Motor Technology
Designed for commercial use, the Dimplex AC3W incorporates EnduroTech motor technology to deliver strong, consistent airflow.
With an air velocity of approximately 6.2m/s, the heater directs warmth towards the entrance area while maintaining a compact overall design.
Its robust construction makes it suitable for regular use in busy commercial environments.
Robust Steel Construction
The AC3W features a durable pressed-steel fascia finished in Traffic White.
The powder-coated casing provides a clean, professional appearance that complements retail premises, offices and commercial reception areas.
Integrated thermal safety cut-outs provide additional protection during operation.
Compact Wall-Mounted Installation
Measuring just 624mm wide, the Dimplex AC3W is designed for installation above single commercial doorways.
Its compact depth of 139mm helps create a discreet appearance, while the included wall bracket supports secure fixed installation.
The heater requires permanent electrical connection and must be installed and commissioned in accordance with the manufacturer's instructions.
Practical Commercial Entrance Heating
Combining powerful 3kW heating, flexible operating modes, programmable temperature control and durable construction, the Dimplex AC3W is a practical choice for commercial premises requiring additional warmth around entrance areas.
Its compact wall-mounted design, convenient controls and modern heating technology make it an excellent solution for shops, offices and reception spaces.
Key Features
- 3kW Maximum Heat Output: Powerful supplementary heating for commercial entrances.
- Two Heat Settings: Choose between 1.3kW and 3kW.
- Fan-Only Operation: Circulate air without activating the heating elements.
- Designed for Single Doorways: Compact heating solution for commercial entrances.
- Downward Airflow: Directs warm air towards the entrance area.
- Dimplex ConfigR App Compatibility: Advanced heating configuration and control.
- Electronic Thermostat: Adjustable temperature settings from 7°C to 32°C.
- Seven-Day Programmable Timer: Schedule heating around business operating hours.
- Boost Function: Additional heating control through the ConfigR app.
- Onboard Rocker Switches: Convenient manual operation after commissioning.
- EnduroTech Motor Technology: Designed for durable, consistent airflow.
- 6.2m/s Air Velocity: Strong directional airflow.
- Compact Wall-Mounted Design: Saves valuable floor space.
- Pressed-Steel Construction: Durable casing for commercial environments.
- Powder-Coated White Finish: Clean, professional appearance.
- Thermal Safety Cut-Outs: Built-in overheat protection.
- IP21 Rating: Protection against specified solid objects and vertically dripping water.
- Wall-Mounting Bracket Included: Supports fixed installation.
Technical Specifications
- Brand: Dimplex
- Model: AC3W
- Manufacturer Material Code: 400001830
- Product Type: Electric Over Door Heater / Air Curtain
- Colour: Traffic White (RAL 9016)
- Maximum Heat Output: 3000W / 3kW
- Half Heat Output: 1300W / 1.3kW
- Heating Technology: Electric Fan-Assisted
- Operating Modes: Fan Only, Half Heat, Full Heat
- Controls: Onboard Rocker Switches and ConfigR App
- Electronic Thermostat: Yes
- Temperature Adjustment: 7°C–32°C
- Programmable Timer: Seven-Day
- Boost Function: Yes
- Motor Technology: EnduroTech
- Air Velocity: 6.2m/s
- Noise Level: 50.5dB(A)
- Airflow Rate: 212m³/h
- IP Rating: IP21
- Construction: Pressed Steel
- Finish: Powder-Coated White
- Thermal Safety Cut-Outs: Two Manual-Reset Cut-Outs
- Installation Type: Fixed Wall Mounting
- Electrical Connection: Hardwired
- Power Supply: 230V / 50Hz

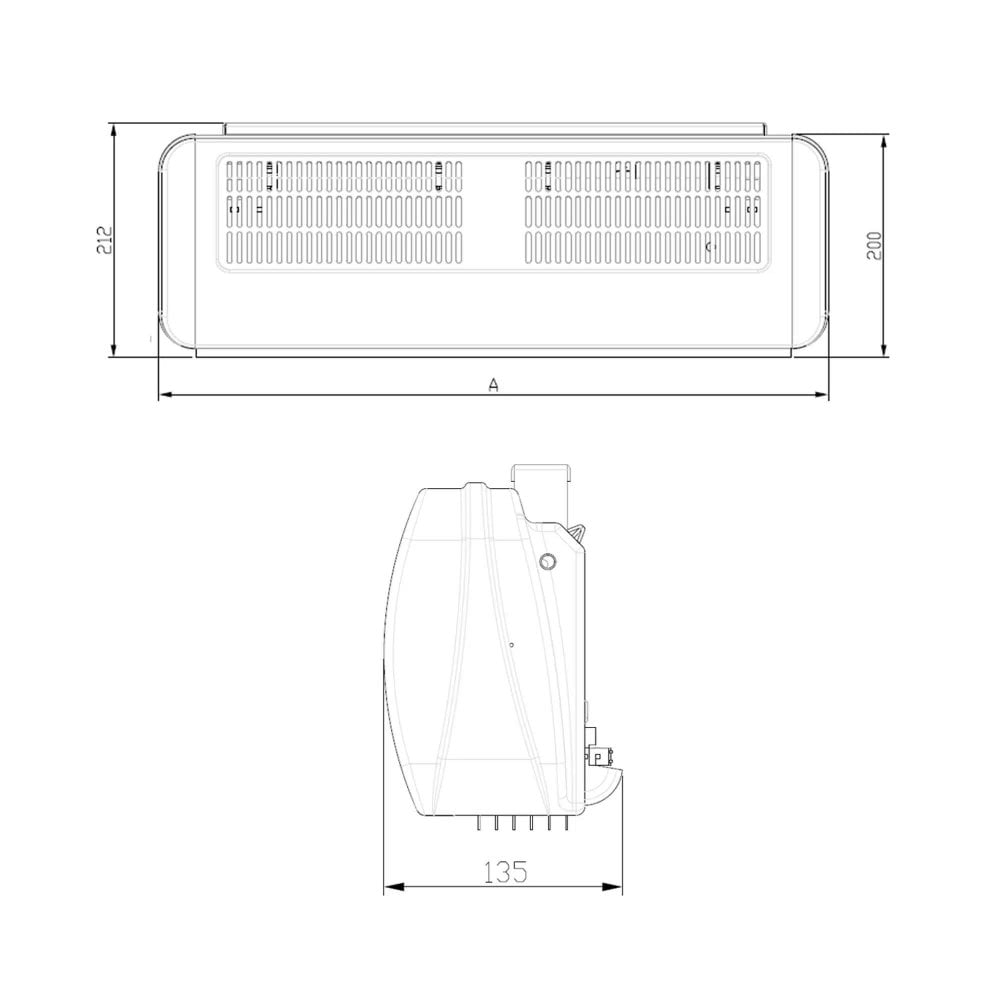

- Width: 624mm
- Height: 214mm
- Depth: 139mm
- Net Weight: 5.1kg
- Packaged Weight: 5.7kg
- Packaged Dimensions: 655 × 260 × 180mm (W × H × D)
- Manufacturer Guarantee: 2 Years, Extendable to 3 Years with Qualifying Registration
What's in the Box?
- Dimplex AC3W 3kW Over Door Heater White
- Wall-Mounting Bracket
