Description

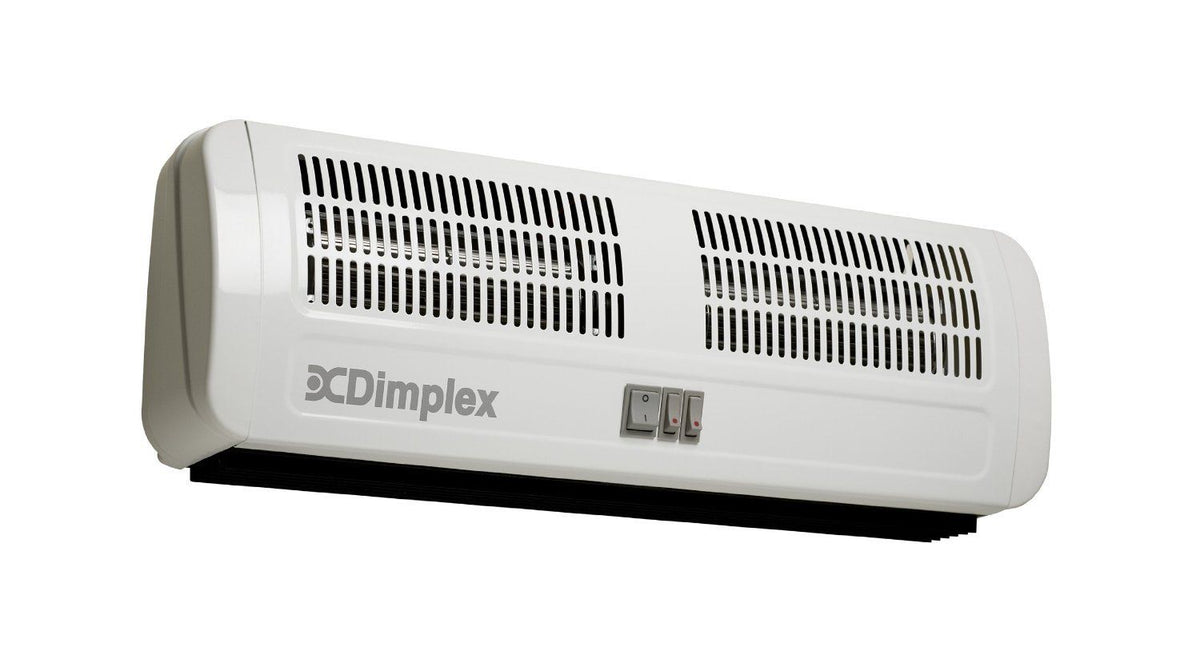

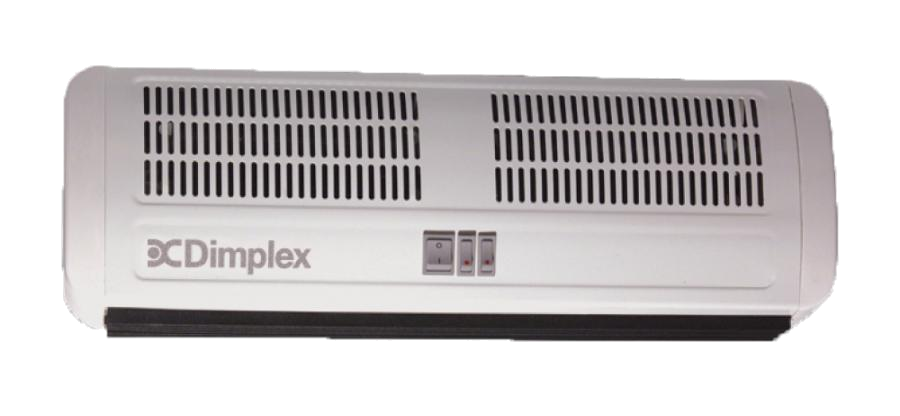

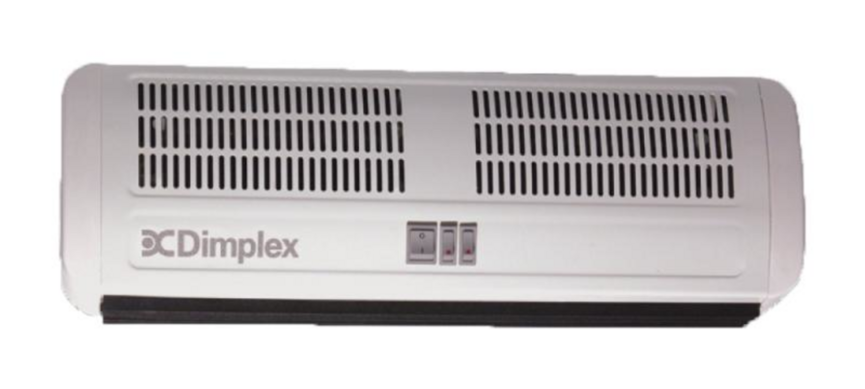

Help maintain a comfortable indoor environment with the Dimplex AC45N 4.5kW Over Door Air Curtain. Designed for commercial entrances, shops, offices and reception areas, this powerful electric air curtain creates a downward flow of heated air to help reduce cold draughts and heat loss around frequently used doorways.
With a maximum heat output of 4.5kW, the Dimplex AC45N provides effective entrance heating for businesses where doors are regularly opened and closed. Its compact design makes it particularly suitable for smaller commercial entrances where maintaining a welcoming indoor temperature is important.
Effective Heating for Commercial Entrances
Installed above a doorway, the AC45N directs a stream of air towards the entrance, helping reduce the movement of cold outdoor air into the building. This creates a more comfortable environment for customers, employees and visitors, particularly during colder weather.
The 605mm-wide design is ideal for single doorways, while the discreet white finish blends neatly into commercial interiors.
Flexible Heat and Fan Settings
The Dimplex AC45N offers two heating outputs, allowing you to select the appropriate level of warmth for your environment.
Choose between 2.25kW half heat and 4.5kW full heat, or operate the fan without heating when additional warmth is unnecessary.
Simple onboard controls make everyday operation straightforward, providing practical heating without complicated programming.
Versatile Wall or Ceiling Installation
Designed for permanent installation, the AC45N can be mounted above an entrance using a wall or ceiling fixing arrangement.
The adjustable mounting bracket allows the airflow direction to be positioned to suit the doorway, helping achieve effective coverage.
With an optimum mounting height of up to 2.3 metres, the AC45N is suitable for a range of commercial entrance applications. Multiple units can also be installed side by side for wider openings.
Reliable Commercial Heating
The AC45N incorporates thermal safety protection and is designed for fixed electrical installation.
Whether used above a shop entrance, office doorway or reception area, this Dimplex air curtain offers a practical solution for reducing uncomfortable draughts and providing supplementary entrance heating.
Combining powerful 4.5kW heating, flexible mounting options and straightforward controls, the Dimplex AC45N is an excellent choice for commercial environments.
Key Features
- 4.5kW Maximum Heat Output: Provides powerful electric heating for commercial entrances.
- Over-Door Air Curtain: Helps reduce cold draughts and heat loss through frequently used doorways.
- Two Heat Settings: Choose between 2.25kW half heat and 4.5kW full heat.
- Fan-Only Operation: Provides airflow without activating the heating elements.
- Compact 605mm Width: Particularly suitable for single commercial doorways.
- Onboard Manual Controls: Straightforward operation without complicated settings.
- Wall or Ceiling Mounting: Flexible installation to suit different entrance layouts.
- Adjustable Airflow Direction: Position the airflow to suit the doorway.
- Optimum Mounting Height: Designed for installation up to approximately 2.3 metres.
- Thermal Safety Protection: Incorporates protection against overheating.
- Commercial Applications: Ideal for shops, offices, reception areas and similar premises.
- Side-by-Side Installation: Multiple units can be used for wider entrances.
- White Finish: Discreet appearance suitable for commercial interiors.
- Fixed Electrical Installation: Designed for permanent connection to the electrical supply.
Technical Specifications
- Brand: Dimplex
- Model: AC45N
- Product Type: Electric Over Door Air Curtain
- Colour: White
- Maximum Heat Output: 4.5kW
- Half Heat Output: 2.25kW
- Full Heat Output: 4.5kW
- Heat Settings: 2
- Fan-Only Mode: Yes
- Controls: Onboard Manual Controls
- Remote Control: No
- Installation Type: Wall or Ceiling Mounted
- Width: 605mm
- Height: 200mm
- Depth: 135mm
- Net Weight: 5.2kg
- Air Velocity: 5.5m/s
- Airflow: Approximately 248m³/h
- Noise Level: 52dB(A)
- Optimum Mounting Height: Up to 2.3m
- Minimum Mounting Height: 1.8m
- Electrical Connection: Fixed Wiring
- Thermal Safety Protection: Yes
- Suitable Application: Commercial Doorways and Entrances
What's in the Box?
- Dimplex AC45N 4.5kW Over Door Air Curtain White
- Mounting Bracket
