Description

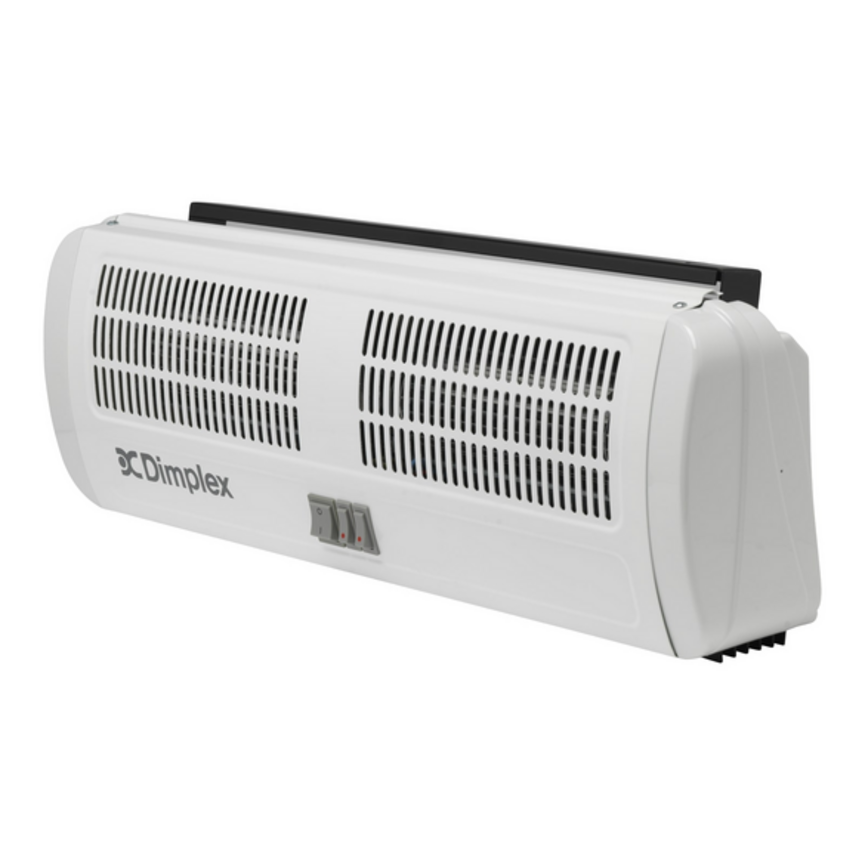

Help maintain a more comfortable indoor environment with the Dimplex AC3N 3kW Over Door Air Curtain. Designed for commercial entrances, shops, offices and other frequently used doorways, this compact electric air curtain creates a downward flow of air to help reduce the movement of cold outdoor air into the building.
With a maximum heat output of 3kW and a choice of heating settings, the Dimplex AC3N provides practical entrance heating for businesses where doors are regularly opened and closed.
Effective Over-Door Heating

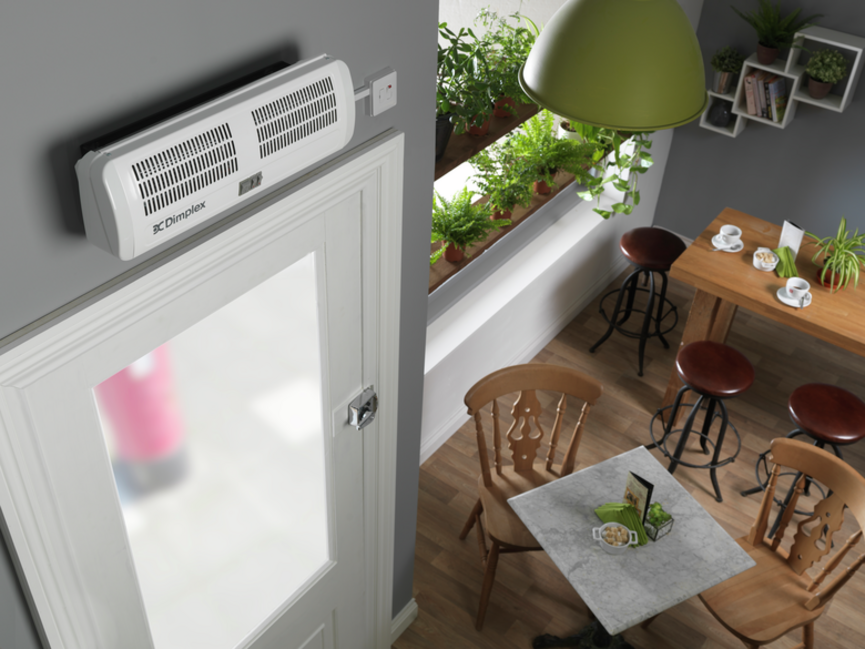

The Dimplex AC3N is designed to be installed above a doorway, directing a stream of warm air downwards across the entrance. This helps reduce cold draughts and provides a more welcoming environment for customers, employees and visitors.
Its compact 605mm width makes it particularly suitable for smaller commercial doorways, reception areas, retail entrances and offices.
Flexible Heating Settings
The AC3N offers two heat settings, allowing you to adjust the heating output according to conditions.
Choose between half heat and full heat, or operate the fan without heating when a flow of unheated air is preferred.
Simple onboard controls make the air curtain straightforward to operate without requiring a separate remote control.
Compact and Versatile Installation
With its discreet white finish and compact design, the Dimplex AC3N fits neatly above commercial entrances without dominating the surrounding space.
The unit can be wall-mounted or ceiling-mounted, providing flexibility for different building layouts. Multiple units can also be installed side by side to accommodate wider entrances.
An integrated thermal safety cut-out provides additional protection against overheating.
Designed for Commercial Environments
Whether installed above a shop entrance, office doorway or reception area, the Dimplex AC3N provides a practical solution for reducing cold draughts around frequently used entrances.
Combining reliable electric heating, straightforward controls and flexible installation, this 3kW air curtain is a useful addition to commercial premises.
Key Features
- 3kW Maximum Heat Output: Provides heated airflow across commercial doorways.
- Over-Door Air Curtain: Helps reduce cold draughts entering through frequently used entrances.
- Two Heat Settings: Choose half heat or full heat according to requirements.
- Fan-Only Operation: Circulates unheated air when additional warmth is unnecessary.
- Onboard Controls: Simple switches for fan and heating operation.
- Compact 605mm Width: Suitable for smaller commercial entrances and doorways.
- Wall or Ceiling Mounting: Flexible installation to suit different layouts.
- Downward Airflow: Directs air towards the entrance area.
- Thermal Safety Cut-Out: Provides protection against overheating.
- Commercial Applications: Suitable for shops, offices, reception areas and similar entrances.
- Multiple Unit Installation: Units can be positioned side by side for wider doorways.
- White Finish: Discreet appearance suitable for commercial interiors.
Technical Specifications
- Brand: Dimplex
- Model: AC3N
- Product Type: Electric Over Door Air Curtain
- Colour: White
- Maximum Heat Output: 3.0kW
- Heat Settings: Half Heat / Full Heat
- Fan-Only Mode: Yes
- Controls: Onboard Manual Controls
- Remote Control: No
- Installation Type: Wall or Ceiling Mounted
- Width: 605mm
- Height: 200mm
- Depth: 135mm
- Net Weight: 5.1kg
- Packaged Weight: 5.5kg
- Packaged Dimensions: 730 × 230 × 170mm
- Air Velocity: 6.2m/s
- Noise Level: 50.5dB(A)
- Electrical Supply: 230V Single Phase
- Thermal Safety Cut-Out: Yes
- Minimum Mounting Height: 1.8m
- Recommended Mounting Height: 1.8–2.3m
- Electrical Connection: Fixed Wiring
- EAN: 5011397018250
What's in the Box?
- Dimplex AC3N 3kW Over Door Air Curtain White
- Mounting Bracket
