Description

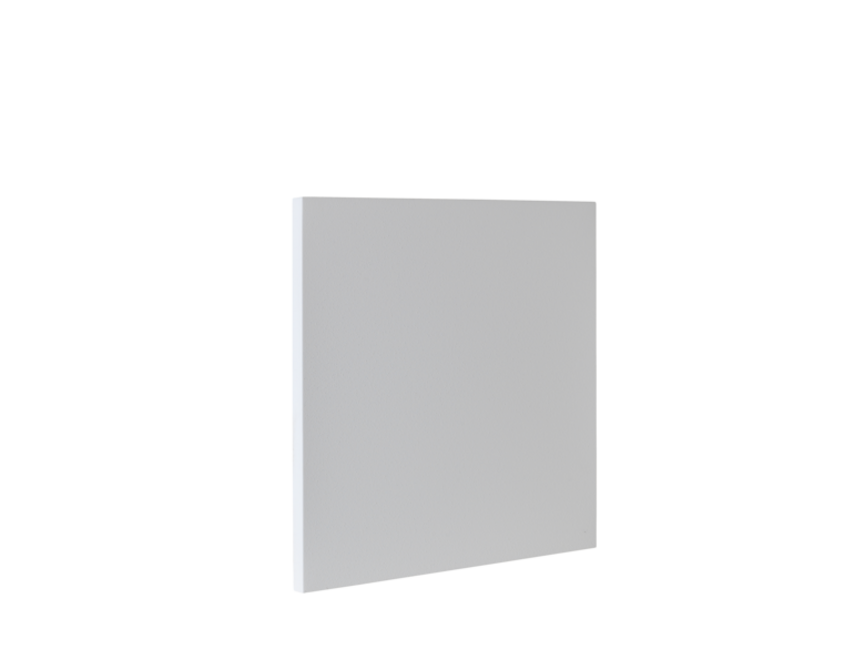

The Dimplex IRP300 Infrared Panel Heater offers a modern, space-saving solution for comfortable electric heating in residential and commercial environments. Featuring advanced far-infrared heating technology, this compact 300W panel delivers targeted radiant warmth, making it particularly suitable for well-insulated homes, offices, meeting rooms and other light commercial spaces.
Unlike traditional convection heaters, which primarily warm the surrounding air, the Dimplex IRP300 uses far-infrared technology to transfer heat directly to people, surfaces and objects. This provides comfortable warmth without relying primarily on air circulation.

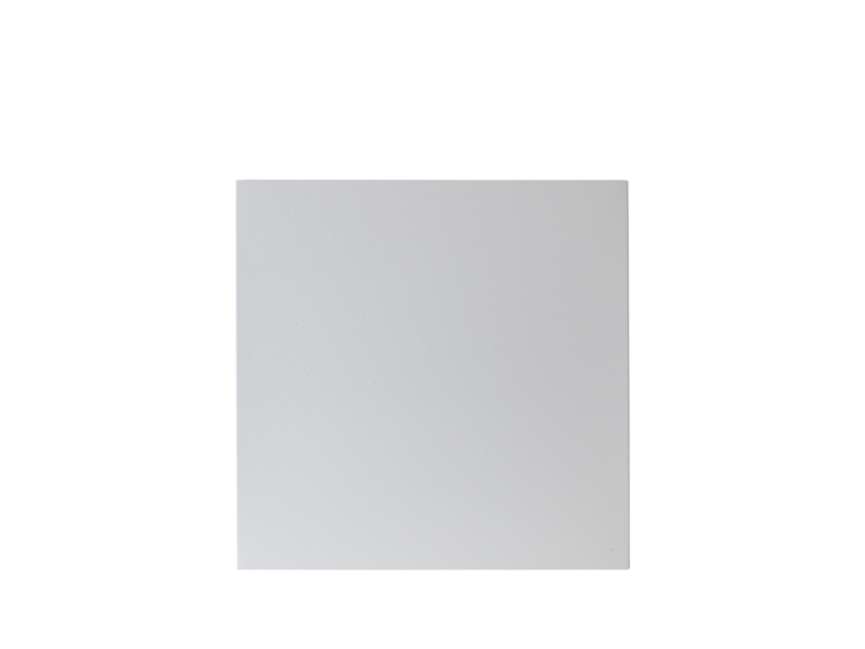

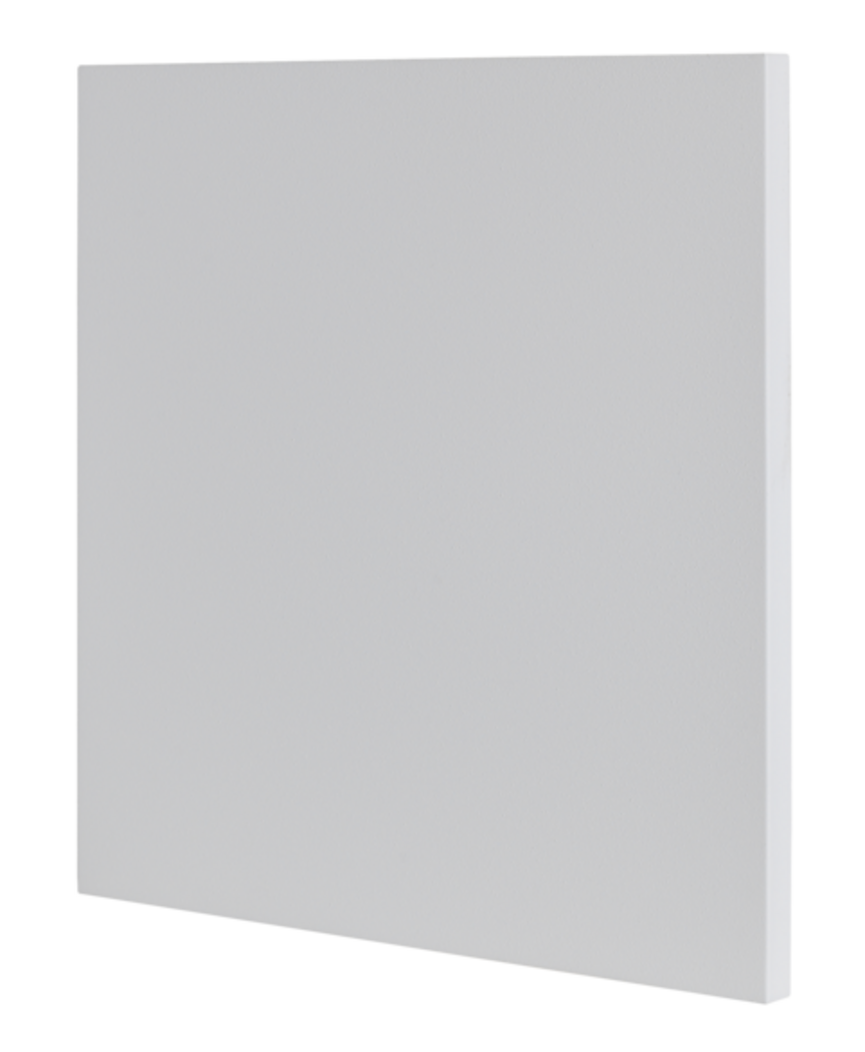

With its ultra-slim 30mm profile and contemporary matt white textured finish, the IRP300 blends discreetly into modern interiors. Measuring just 592mm x 592mm, its compact square design makes it particularly suitable for smaller spaces or areas where a larger heating panel would be impractical.
Designed for flexible installation, the Dimplex IRP300 can be mounted on a wall or ceiling, helping maximise available floor space. Its dimensions also allow it to be recessed into a standard 600mm x 600mm suspended ceiling grid using the optional IRP300 frame kit, sold separately.
The IRP300 is designed to operate with the Dimplex DTB-2R digital thermostat, sold separately. This controller provides seven-day heating schedules, precise temperature adjustment and adaptive start technology, allowing users to manage their heating according to their daily routines.
Featuring IP44 protection, an integrated safety cut-out and durable powder-coated metal construction, the Dimplex IRP300 is designed for dependable everyday operation.
For homeowners and businesses seeking a discreet alternative to traditional electric radiators, the Dimplex IRP300 combines contemporary styling with effective infrared heating technology.
Please note: The Dimplex DTB-2R thermostat is required for compliant temperature and time control and is sold separately.
Key Features
- 300W Infrared Heating: Provides targeted radiant warmth for residential and light commercial spaces.
- Far-Infrared Technology: Transfers heat directly to people, surfaces and objects rather than relying primarily on air circulation.

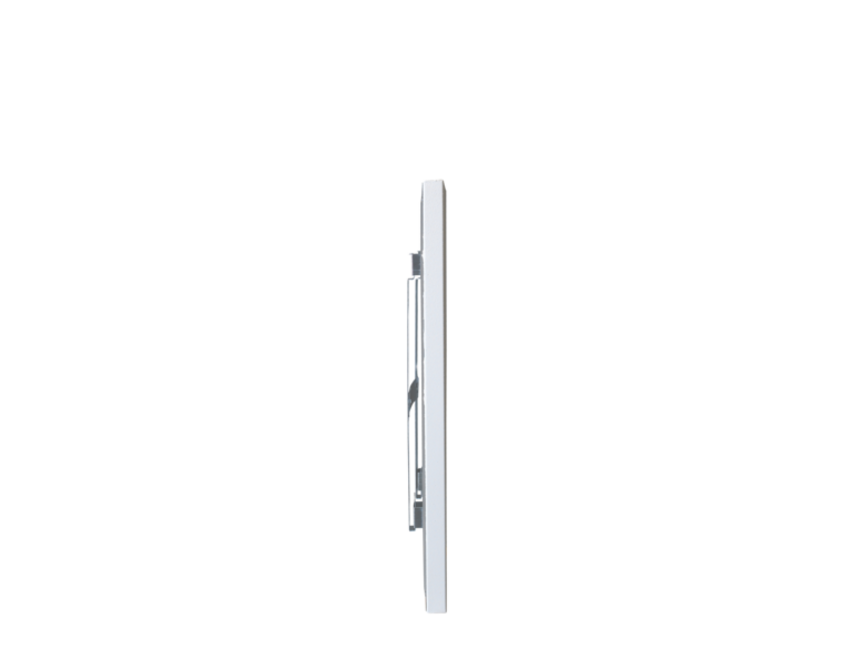

- Ultra-Slim Design: Just 30mm deep for a discreet, contemporary appearance.
- Compact Square Panel: Measures 592mm x 592mm, making it suitable for smaller spaces.
- Wall or Ceiling Installation: Flexible mounting options help maximise usable floor space.
- Recessed Ceiling Installation: Can be fitted into a standard 600mm x 600mm suspended ceiling grid using the optional IRP300 frame kit.
- Matt White Textured Finish: Modern, understated appearance suitable for a variety of interiors.
- Ideal for Well-Insulated Properties: Particularly suited to modern homes with low heat loss.
- Commercial Applications: Suitable for offices, meeting rooms, reception areas and other light commercial environments.
- External Thermostat Control: Designed for use with the Dimplex DTB-2R digital thermostat.
- Seven-Day Heating Programmes: Available when connected to the compatible controller.
- Adaptive Start Technology: Compatible controller calculates when heating should begin to reach the desired temperature.
- Multiple Heater Control: A compatible DTB-2R controller can manage multiple infrared panels within its electrical loading limit.
- IP44 Protection: Protected against splashing water and solid objects larger than 1mm.
- Integrated Safety Cut-Out: Provides protection against overheating.
- Durable Construction: Powder-coated sheet metal with a textured finish.
- Extended Manufacturer Guarantee: Two years as standard, with an additional three years available upon qualifying registration.
Technical Specifications
- Brand: Dimplex
- Range: IRP Far-Infrared Panel Heaters
- Model: IRP300
- Product Code: IRP300
- Manufacturer Reference: 378420
- Product Type: Infrared Panel Heater
- Heating Technology: Far-Infrared Radiant Heating
- Colour: White
- Finish: Matt White Textured
- Heating Output: 300W
- Power Rating: 0.3kW
- Electrical Supply: 230V AC
- Frequency: 50Hz
- Installation Type: Wall or Ceiling Mounted
- Optional Installation: Recessed Ceiling Mounting with Separate IRP300 Frame Kit
- Optional Suspension: Ceiling Suspension Cable Set Sold Separately
- Height: 592mm
- Width: 592mm
- Depth: 30mm
- Product Weight: 5kg
- Construction: Powder-Coated Sheet Metal
- IP Rating: IP44
- Electrical Protection Class: Class I
- Thermostat: External Controller Required
- Compatible Controller: Dimplex DTB-2R
- Built-In Thermostat: No
- Built-In Timer: No
- Seven-Day Programming: Available with Compatible Controller
- Adaptive Start: Available with Compatible Controller
- Safety Cut-Out: Yes
- Manufacturer Guarantee: 2 Years Standard, Extendable to 5 Years with Qualifying Registration
What's in the Box?
- Dimplex IRP300 300W Infrared Panel Heater White

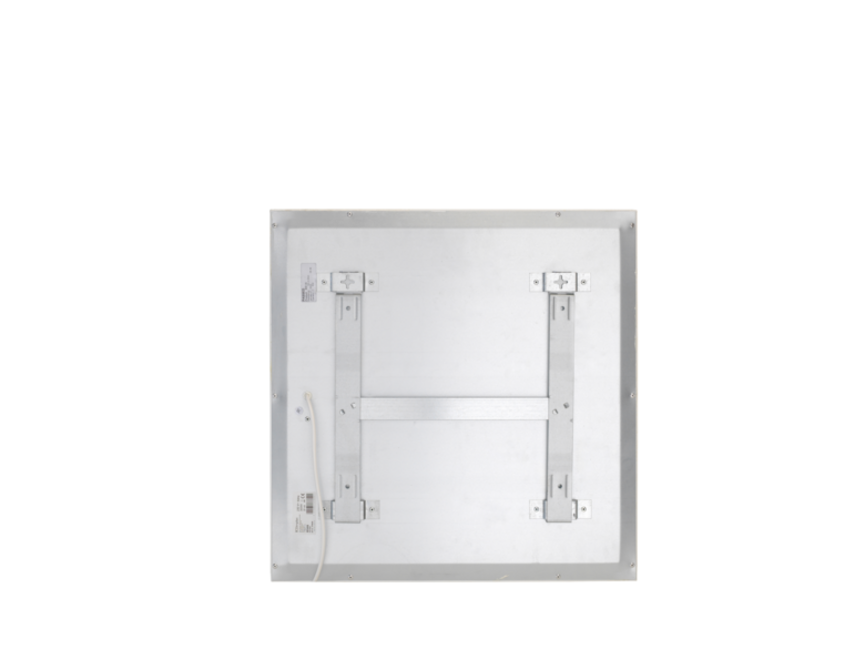

- Wall/Ceiling Mounting Bracket and Fixings
- Installation Instructions
Please note: The Dimplex DTB-2R thermostat, IRP300 recessed ceiling frame kit and optional ceiling suspension cable set are sold separately.
