Description

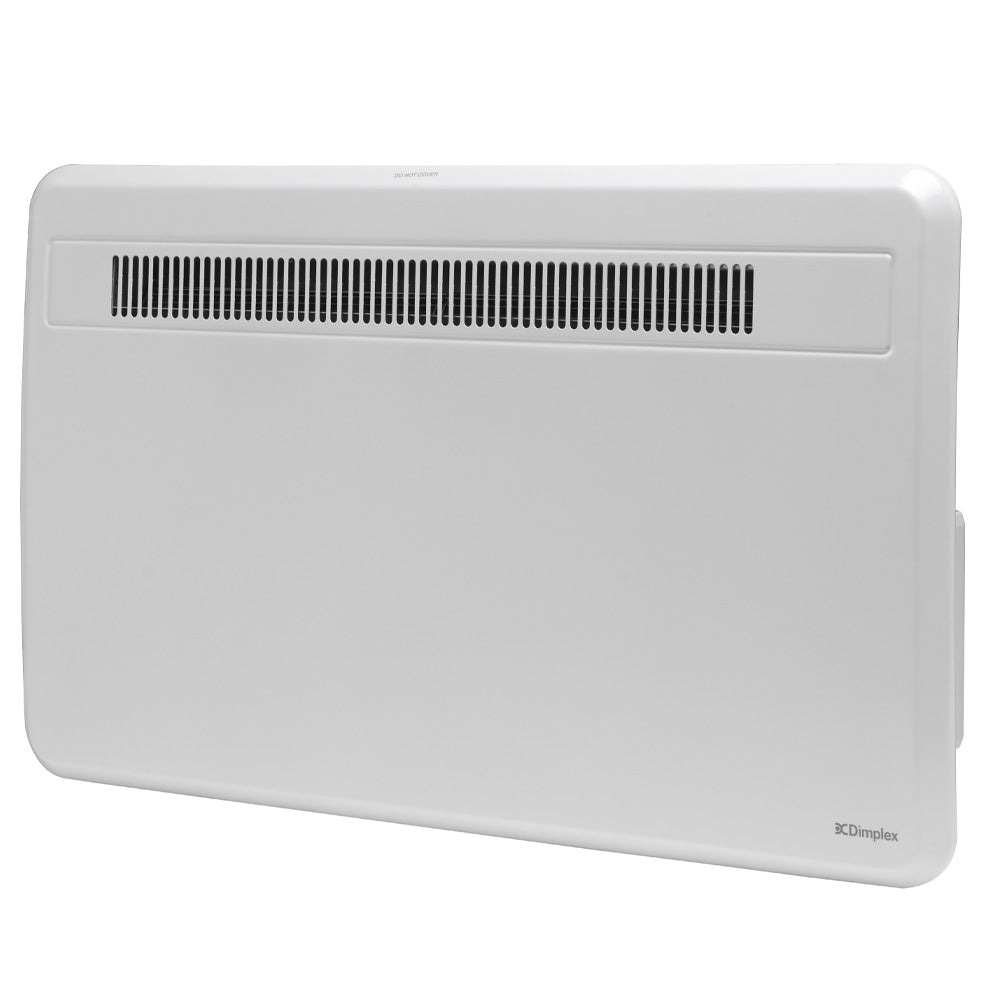

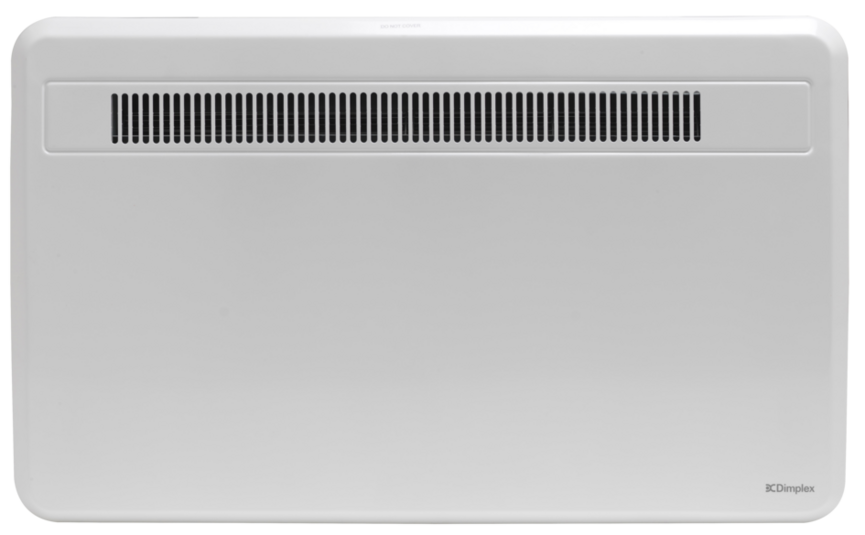

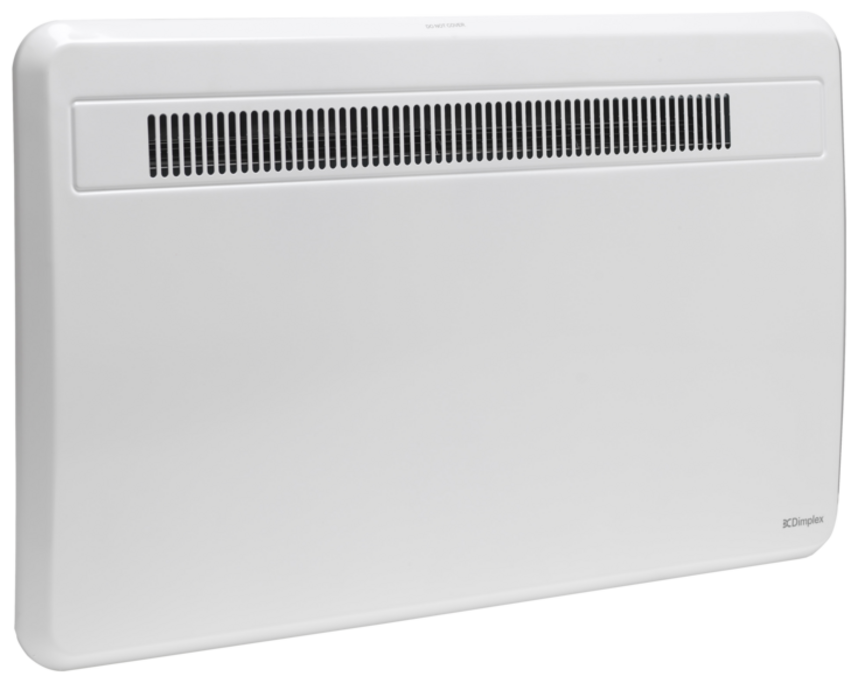

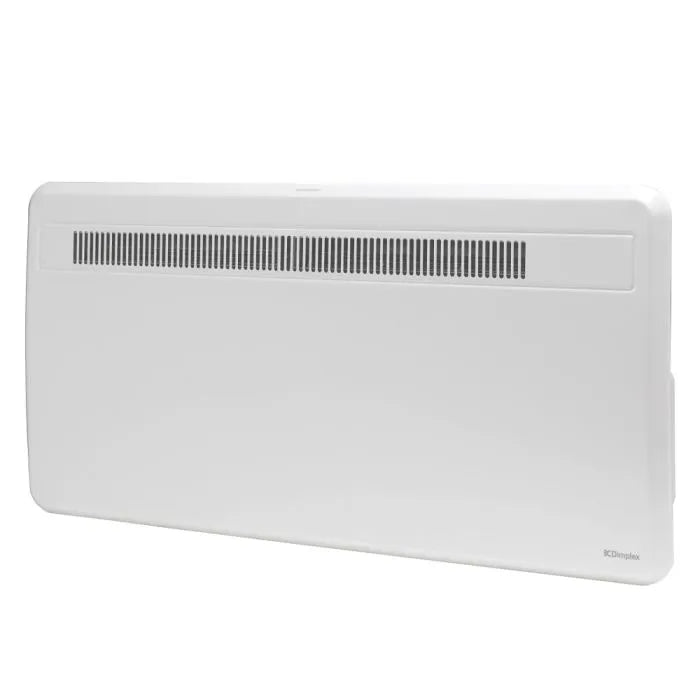

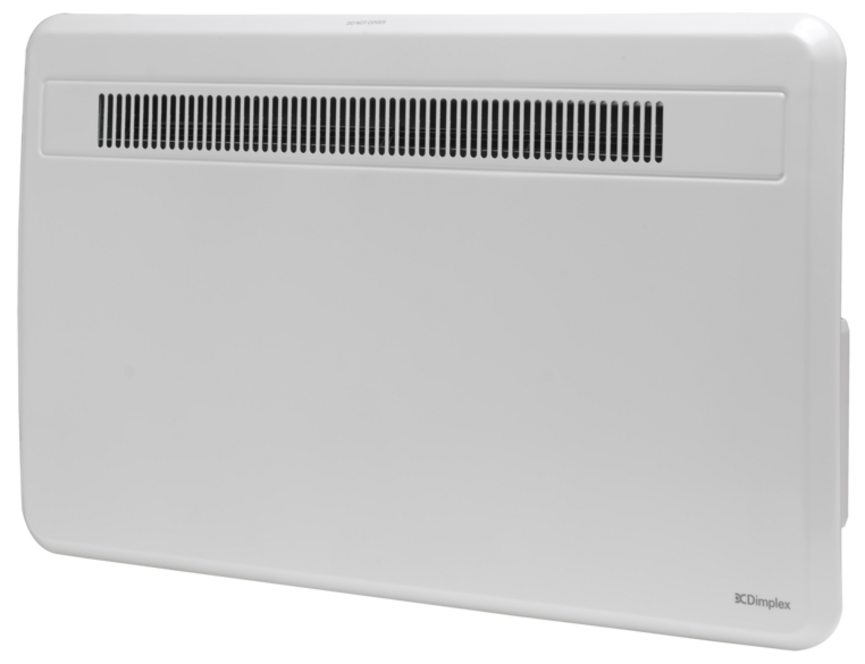

The Dimplex LST100E Low Surface Temperature Panel Heater provides safe, comfortable and precisely controlled electric heating for homes, schools, nurseries, care homes and other environments where protection against hot surfaces is particularly important.
Part of the Dimplex LSTE range, this 1000W wall-mounted electric heater is specifically designed to maintain a maximum external surface temperature of 43°C during normal operation. This makes it especially suitable for environments occupied by young children, older people and individuals who may be vulnerable to accidental contact with hot heating appliances.
Unlike conventional electric panel heaters, the Dimplex LST100E combines a low surface temperature design with fan-assisted heating technology. The integrated fan helps distribute warmth quickly and efficiently throughout the room while maintaining the heater's protective surface temperature limit.
The built-in electronic thermostat provides precise temperature control to within ±0.2°C, helping maintain consistent comfort throughout the day. A seven-day programmable timer allows users to customise heating schedules, with convenient preset programmes including Home All Day and Out All Day.
Additional energy-saving features include adaptive start technology, which calculates when heating should begin to achieve the desired temperature, and open window detection, which helps prevent unnecessary energy consumption when a sudden temperature drop is detected.
The LST100E also features a modern RGB backlit display with touch-sensitive controls, making it easy to adjust temperatures, select heating modes and manage programmed schedules.
For additional flexibility, the heater supports remote operation through the Dimplex Control app when connected to the separately available RF module and Dimplex Control Hub.
With IP24 splash protection, child lock functionality, automatic overheat protection and a durable white powder-coated steel casing, the Dimplex LST100E is a practical heating solution for both residential and commercial environments.
Its compact wall-mounted design provides a neat, space-saving installation, while the 1kW heating output makes it particularly suitable for smaller rooms requiring dependable, controlled warmth.
Key Features
- 1000W Heating Output: Provides effective electric heating for residential and commercial environments.
- Low Surface Temperature Design: External surfaces are designed not to exceed 43°C during normal operation.
- Ideal for Vulnerable Environments: Particularly suitable for nurseries, schools, care homes, healthcare facilities and sheltered accommodation.
- Fan-Assisted Heating: Helps warm rooms more quickly than conventional non-fan-assisted panel heaters.
- Electronic Thermostat: Provides precise temperature control with an accuracy of ±0.2°C.
- Seven-Day Programmable Timer: Allows customised heating schedules throughout the week.
- Adaptive Start Technology: Automatically calculates when heating should begin to reach the programmed temperature.
- Open Window Detection: Helps reduce unnecessary energy consumption when sudden temperature drops are detected.
- RGB Backlit Display: Clear graphical display for convenient temperature adjustment and programming.
- Touch-Sensitive Controls: Modern capacitive controls with audio feedback.
- Multiple Heating Modes: Includes Eco, Manual and Frost Protect.
- Additional Operating Modes: Away, Boost and Setback provide greater heating flexibility.
- Child Lock: Helps prevent accidental changes to heater settings.
- PIN-Based Heater Lock: Provides additional security over heater operation.
- Frost Protection: Helps maintain a minimum room temperature during colder periods.
- Optional App Control: Compatible with Dimplex Control when used with the separately available RF module and hub.
- IP24 Splash Protection: Suitable for appropriately specified indoor environments.
- Automatic Thermal Cut-Out: Provides protection against overheating.
- Wall-Mounted Design: Compact construction saves valuable floor space.
- Durable Steel Construction: White powder-coated casing designed for long-term use.
- 2-Year Manufacturer Guarantee: Subject to manufacturer terms and conditions.
Technical Specifications
- Brand: Dimplex
- Range: LSTE Low Surface Temperature Heaters
- Model: LST100E
- Product Code: LST100E
- Manufacturer Reference: 091185
- Product Type: Low Surface Temperature Electric Panel Heater
- Heating Technology: Fan-Assisted Electric Convection
- Colour: White
- Finish: Traffic White (RAL 9016)
- Heating Output: 1000W
- Power Rating: 1kW
- Maximum External Surface Temperature: 43°C
- Electrical Supply: 230–240V AC
- Frequency: 50Hz
- Installation Type: Wall Mounted
- Height: 430mm
- Width: 690mm
- Depth: 108mm
- Product Weight: 8.76kg
- Construction: Epoxy-Polyester Powder-Coated Steel
- Heating Element: Finned Mineral-Filled Sheathed Element
- Fan-Assisted Heating: Yes
- Thermostat: Integrated Electronic Thermostat
- Thermostat Accuracy: ±0.2°C
- Temperature Adjustment Range: 7–30°C
- Timer: Integrated Seven-Day Programmable Timer
- Timer Programmes: User Timer, Out All Day, Home All Day
- Heating Modes: Eco, Manual, Frost Protect
- Additional Modes: Away, Boost, Setback
- Adaptive Start: Yes
- Open Window Detection: Yes
- Display: RGB Backlit Graphical Display
- Controls: Capacitive Touch-Sensitive Buttons
- Child Lock: Yes
- PIN-Based Heater Lock: Yes
- App Control: Optional with Compatible RF Module and Dimplex Control Hub
- IP Rating: IP24
- Electrical Protection Class: Class I
- Overheat Protection: Automatic Reset Thermal Cut-Out
- Cable Length: 1.3m
- Electrical Connection: Fixed Wiring via Fused Spur
- Clock Battery Backup: CR2032 Coin Cell
- Approvals: CE, UKCA, BEAB
- Country of Manufacture: United Kingdom
- Manufacturer Guarantee: 2 Years
What's in the Box?
- Dimplex LST100E 1000W Low Surface Temperature Panel Heater White
- Wall-Mounting Bracket
